Elan Balustrade

The Spectrum Range

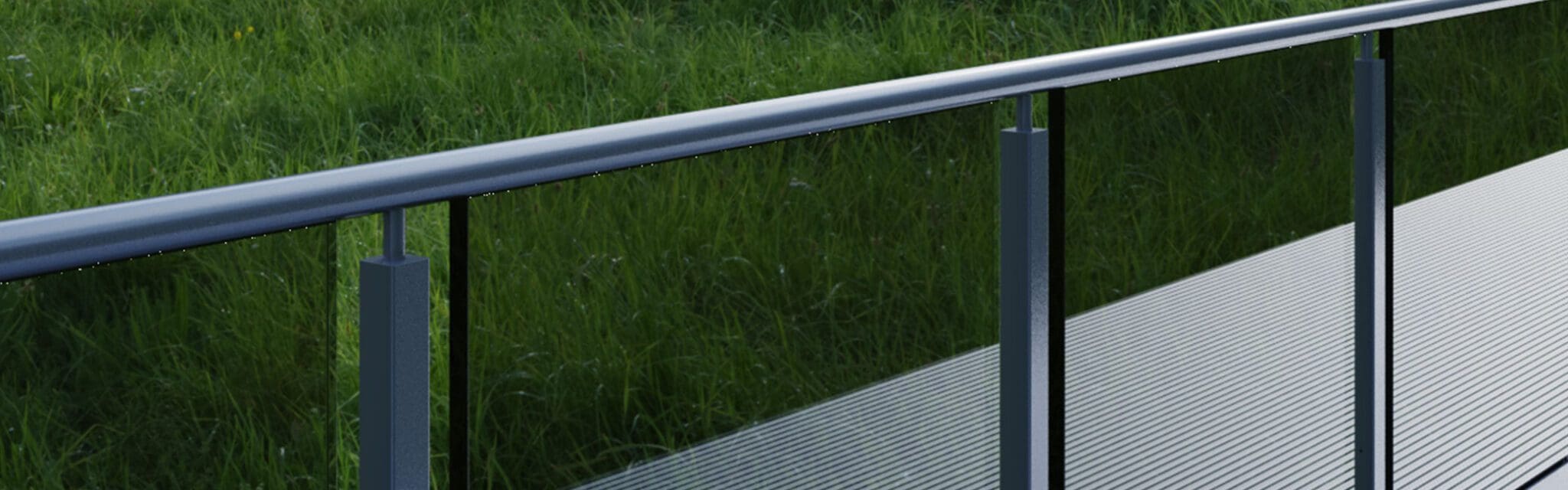

Neaco’s Elan system is a stylish and minimalist alternative to the traditional balustrade, being a sleek cost-effective option compared to structural glass systems. Most balustrade designs secure glass infill panels in place by attaching them to the stanchions with a clip, but Elan’s glass panels are encapsulated by a top rail above and a subtle floor channel below.

In Our Element

Stanchions manufactured from 6063 T4 / T6 Aluminium to the BS EN 755 standard series

Non-Combustible

A2 Fire Rated and fully compliant with BS EN 13501-1

Truly Modular

Manufactured off-site to reduce time, disruption and impact on-site to your bespoke dimensions

Extremely Durable

Has a design life of 60+ years and comes with our 25 Year Warranty*

Our Elan balustrade is a stylish, minimalist alternative to a traditional balustrade in horizontal installations. The result of this is a sleek appearance, economical use of materials, and an easy-to-install solution.

SIGN UP TO OUR ARCHITECT’S LOUNGE TO EXPLORE ALL OUR TECHNICAL INFORMATION



Environmentally Friendly

100% recyclability manufactured from 77% recycled aluminium

Unique Design

Encapsulated at the top and bottom to create an enhanced aesthetic

Loadings

Designed to suit the following kN/m loadings: 0.36, 0.74, 1.5, 3.0

Range of Colours

Powder Coated Aluminium toprail coated to any desired RAL colour

Stanchions

Centric
Quad

Panels

Clear Toughened Glass
Glass Panel With Graphic
Tinted Glass
Coloured Film

Fixings

Grout Fixed
Based Fixed

Toprail

Tubular
Ovular

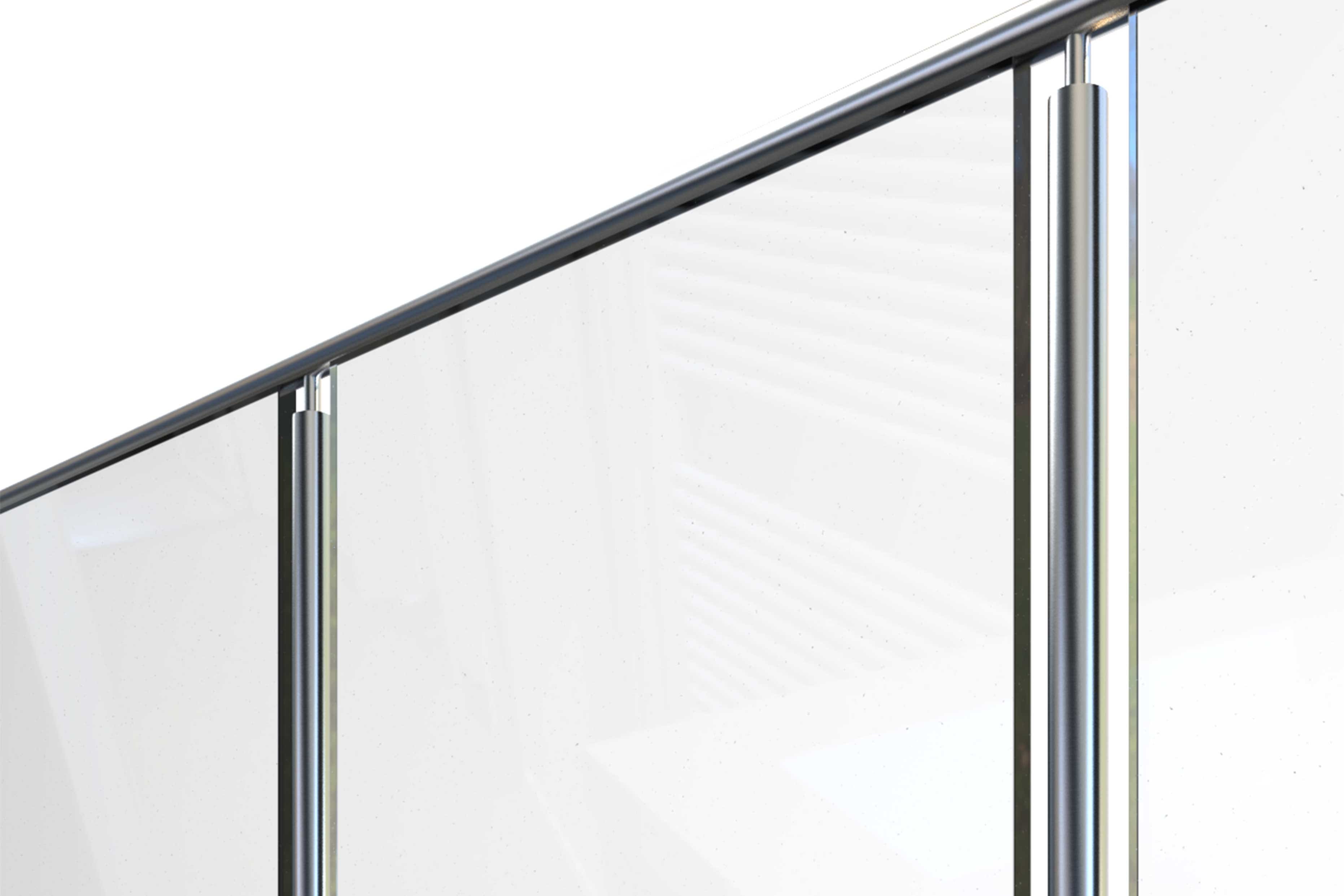

Centric is our original stanchion, offering smooth, classic styling with an optional stem bracket. Centric is a highly flexible option with the ability to adapt to most angles or bends.

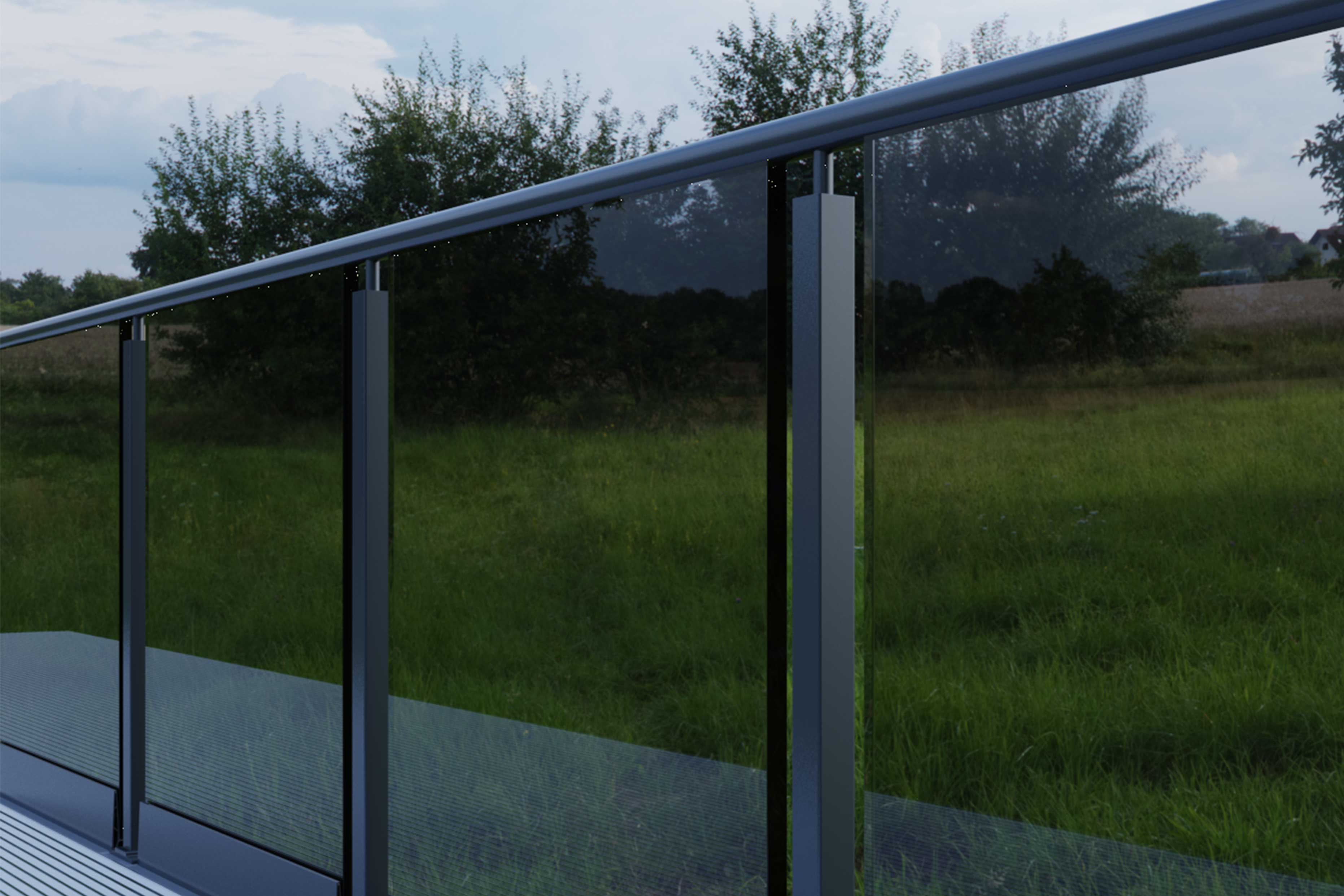

If you want sharp, clean looks, Quad's square profile is an excellent choice. Its contemporary style has made it a popular specification for high-end projects.

Tested in accordance with BS EN12600 Class 1, toughened safety glass panel infills can be clear or tinted depending on your needs or we could even create a Bespoke Etched Design if your aesthetics desire it.

Perforated panel infills can be powder coated in a range of colours and finishes. They provide a robust and durable option for high traffic areas.

Vertical Infill is made from steel railings with an aluminium stanchion and top rail.

Providing classic styling, our horizontal railed infills can be powder coated in a range of colours and finishes. The number of rails can vary according to preference and need and are available in a choice of diameters.

Neaco’s grout fixed detail requires core holes to be drilled on-site, please note core drilling is a wet trade so we advise this is done before any final finishes are applied.

Neaco’s base fixing detail utilises our custom extruded profile base plate, providing a solid platform for the stanchion to fix onto.

The tubular toprail is our most popular specification across all types of design schemes. As well as being economical, it meets compliance and Building Regulations for all types of environments.

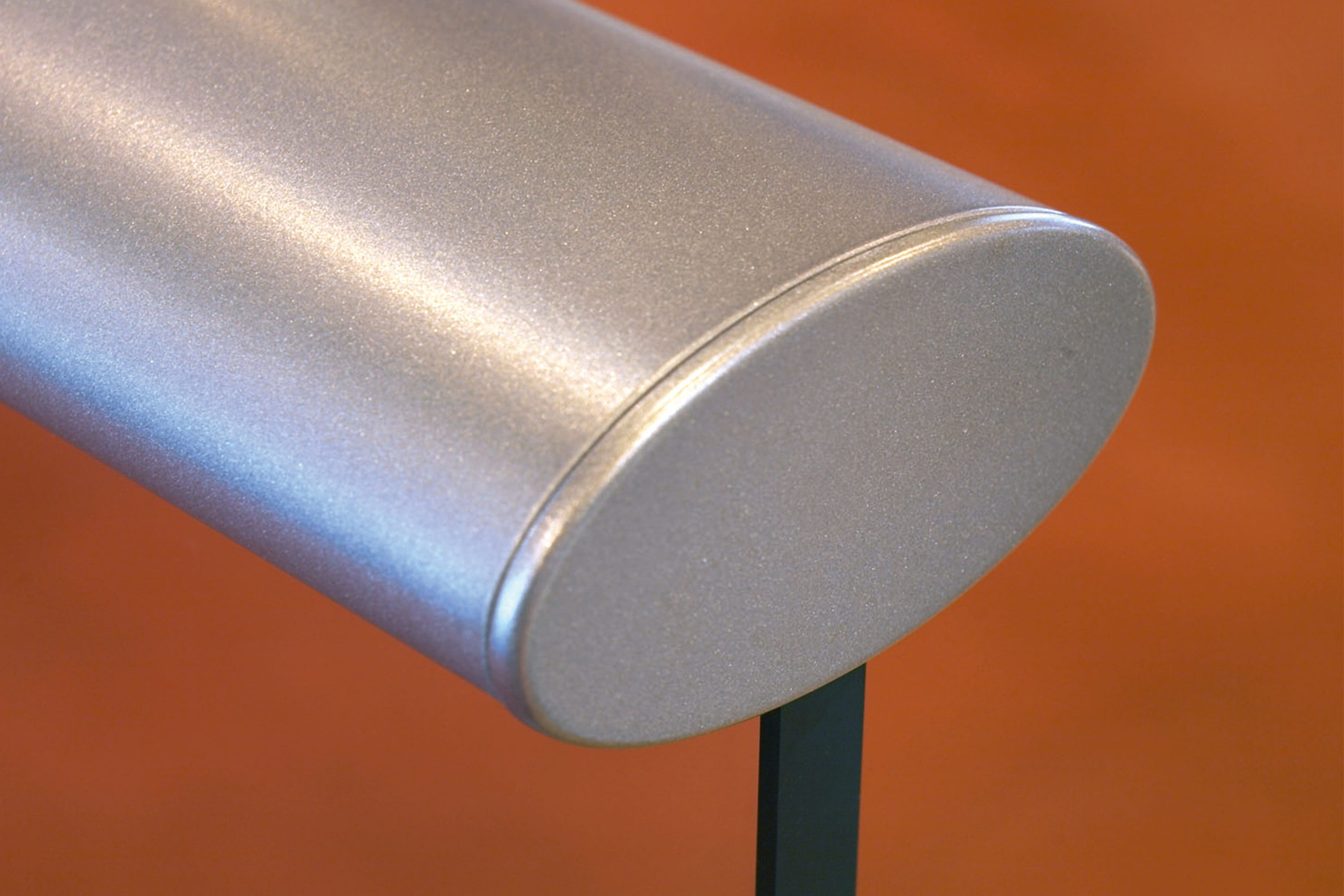

The ovular toprail provides a profile which is wider than the tubular rail to create excellent strength for the glass to encapsulate in. Its unique design means it can only be used on straight runs and not raking.

Elan Balustrade

The balustrade is engineered to close tolerances, with quality formed bends eliminating the need for unsightly mitred joints. Component parts are mechanically secured with concealed fixings, requiring no welding and ensuring rapid assembly on-site (all fixings are supplied).

In accordance with BS EN12600 class 1, our toughened glass panel infills can be clear or tinted to create the ultimate penetration. Or for a more distinctive extra touch, we can also apply graphics on glass panels to generate a tailored etched Design.

Elan is also available as a modular balcony system here which offers the versatility to meet virtually any design requirement, no matter how complex.

Standard Colour Range

Our Elan balustrade can be manufactured in mill finish or powder-coated in a wide range of RAL colours. The balustrade can be utilised for internal and external applications. The system benefits from a Nylon powder coating which provides enhanced durability and allows Neaco to offer an industry-leading guarantee. Bespoke RAL colours can be achieved as we have our own in-house powder coating plant. The powder coating gives the balustrade a satin-smooth finish which is non-chip, permanent, hardwearing and abrasion-resistant. Handrails have excellent insulation properties, are warm to the touch and are comfortable to handle.

Jet Black
RAL 9005
Anthracite Grey
RAL 7016
Agate Grey
RAL 7038
Sapphire Blue
RAL 5003
Ruby Red
RAL 3003
Golden Yellow
RAL 1004
White Aluminium
Metallic
Tungsten
Metallic
Chromium
Metallic
Light Oak
Timberline
Dark Oak
Timberline

York High School

Neaco completed a bespoke product modification for the particular demands of educational architecture when their Spectrum balustrade system was specified for a new facility at York High School.

Go To Project

Ask Us For a Quote

Our friendly, expert team are on hand to speak with you and advise on your requirements.

Neaco Ltd

01653 695721

Technical

01653 695721

We selected tinted glass to provide screening and greater visual definition to accentuate its precise position. Neaco provided a first-class service throughout the design and specification process, offering samples, discussing ideas in detail and working out solutions.”

Alan Thomas | City of York Council Property Services

FAQ’s

What is the difference between Elan and Neaco’s other glass balustrades?
They do not utilize the glass clips, instead the glass is held in a subtle floor channel.
What is a modular system?
Modular systems provide a huge range of modular components which are precision- manufactured off-site to an exacting standard, deliv­ered to the site and then assembled on-site. This means factory-controlled quality, faster installation, less mess, less waste and less energy con­sumption than products which are fabricated on-site. Spectrum's modular components are assembled with an internal connection system which requires no external fixtures and no welding for an ultra-smooth finish.
Why do we manufacture in Aluminium?
Aluminium is a great building material for many reasons: it provides maintenance-free durability and is also non-toxic, corrosive-free, non­combustible and 100% recyclable - a particularly useful feature for our Genesis industrial system designed for eco-friendly performance in the harshest environments. The permanent finish of neaco's nylon powder coating - a standard specification on most Spectrum systems - provides smooth, clean lines for comfortable touch and high aesthetic value. It's also worth noting that our stainless steel systems provide many similar benefits.
Why are our handrails "warm-to-touch"?
‘Warm-to-touch’ is a well-known phrase when it comes to handrails as it is an important building regulation when a handrail is utilised in high-traffic environments. Document K of the building regulations outlines that handrails should not “become excessively cold or hot to touch” (Ref 1.36 e, pg. 15). This is reinforced by section 5.10.5 of BS 8300. The concept is that handrails provide support on stairs or ramps, however, if the environment is subject to extreme temperatures and the handrail conducts this temperature, then this may cause reluctance to use the handrail and therefore cause a safety risk.
Is the glass suitable in high-traffic areas?
Glass is very strong and suitable for high-traffic areas - the glass is toughened in accordance with BS EN12600 class 1. It is ideal for buildings likely to be used by children, where safety on staircases and landings is paramount - the system is very difficult for children to climb and there are no gaps through which they could pass.
Does Neaco Install as well as Supply?
Yes, we provide a full installation service in addition to technical support and consultation throughout the specification process. Our team of experts is always on hand to assist at every stage.
Do Neaco offer bespoke solutions?
Yes, absolutely. Over the years we have worked with numerous architects and designers to incorporate bespoke features outside of our standard specifications, including light fittings to the top of stanchions, etched designs to glass infills and structural glass installed at unusual angles. We pride ourselves on the flexibility and adaptability of our technical support services, so please feel free to discuss your particular requirements with one of our team.
