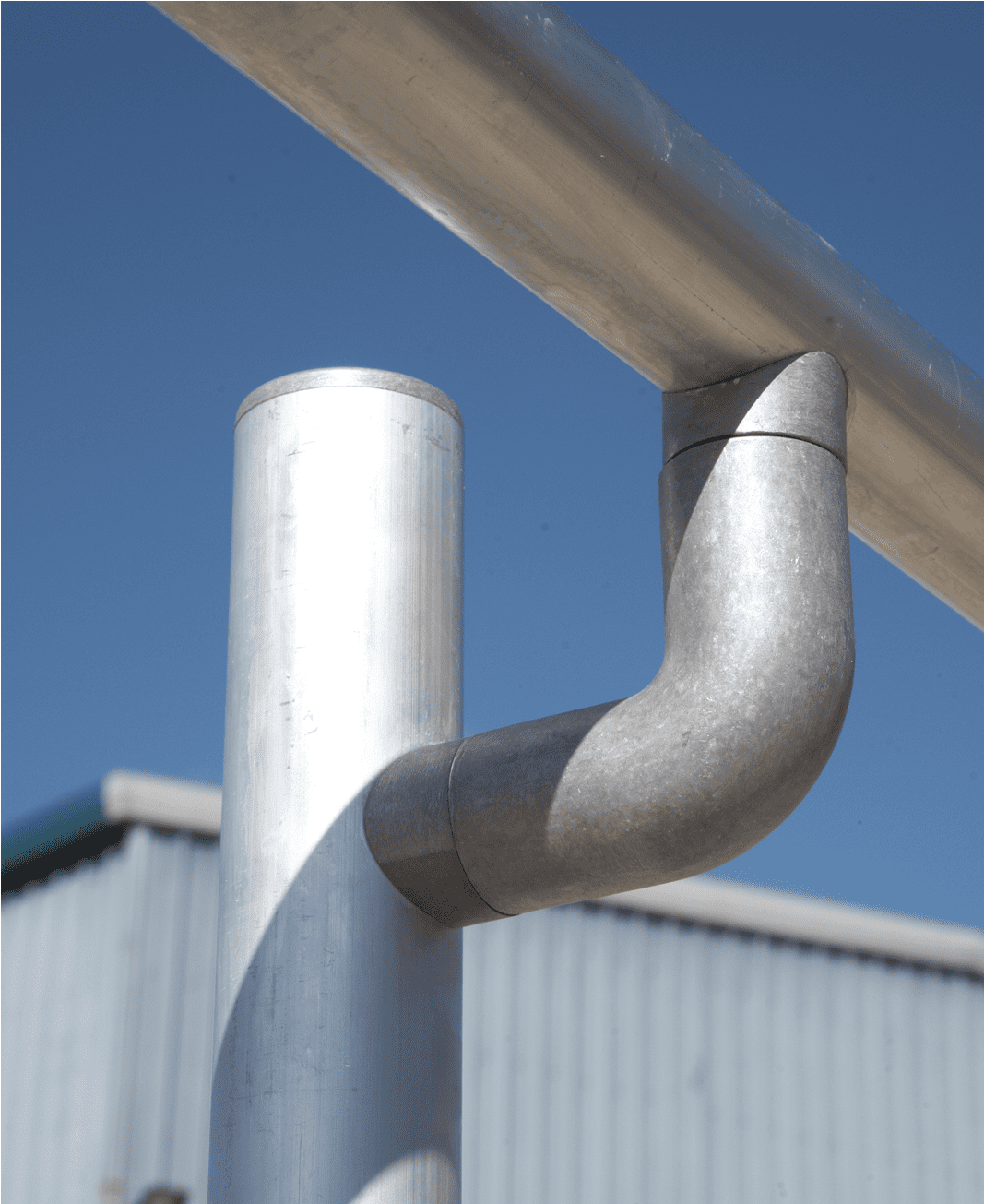

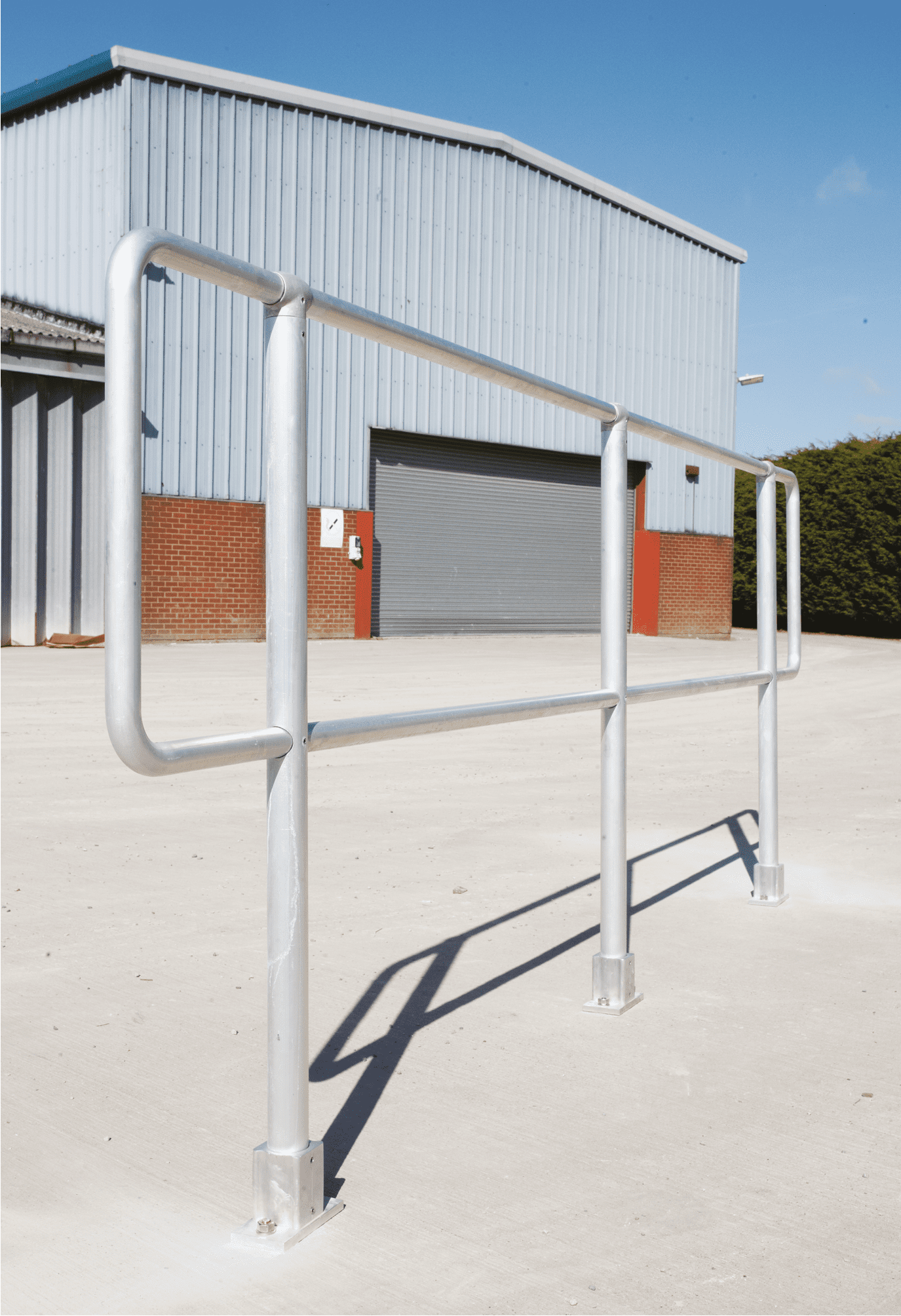

Industrial Balustrade

The Genesis Range

When you need hard-wearing qualities for harsh environments, our Genesis industrial handrails and balustrade have the durability to stand the test of time.

DDA Compliant

Specifically designed to meet the requirements of part ‘M’ of the Building Regulations 2004 regarding provisions for disabled people

In Our Element

Manufactured from 6063 T4 / T6 Aluminium to the BS EN 755 standard series

Environmentally Friendly

100% recyclability manufactured from 77% recycled aluminium

Mechanically Fixed

Carefully designed components for ease of assembly utilising mechanical fasteners

Our Industrial Balustrade features an environmentally friendly design with modular construction that minimises noise, waste and energy consumption.

Non-Combustible

A1 Fire Rated and fully compliant with BS EN 13501-1

Extremely Durable

Has a design life of 60+ years and comes with our 25 Year Warranty*

Loadings

Designed to suit the following kN/m loadings: 0.36, 0.74, 1.5, 3.0

Concealed Fixings

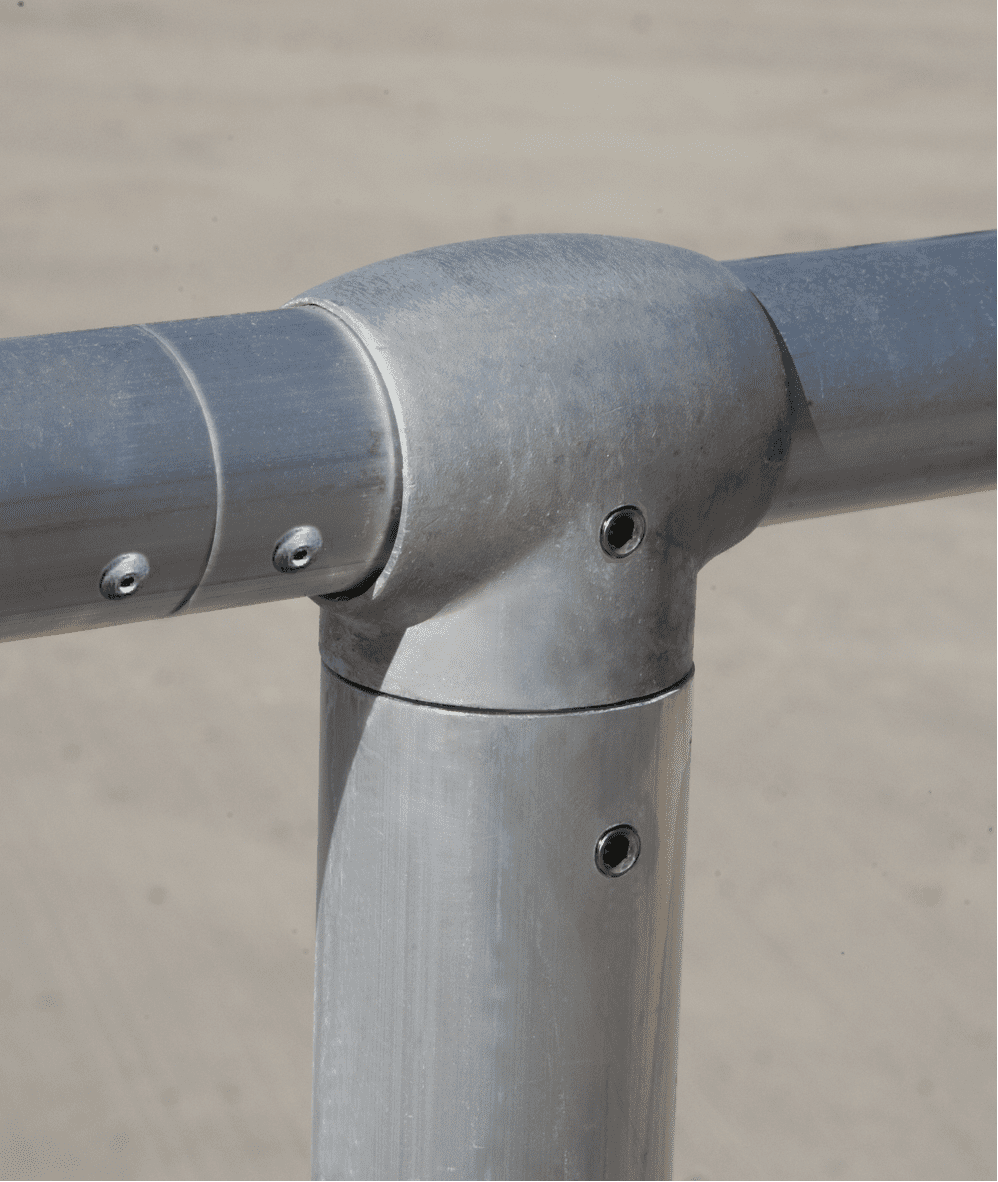

Components are connected internally making this product tamper-free

Extremely Durable

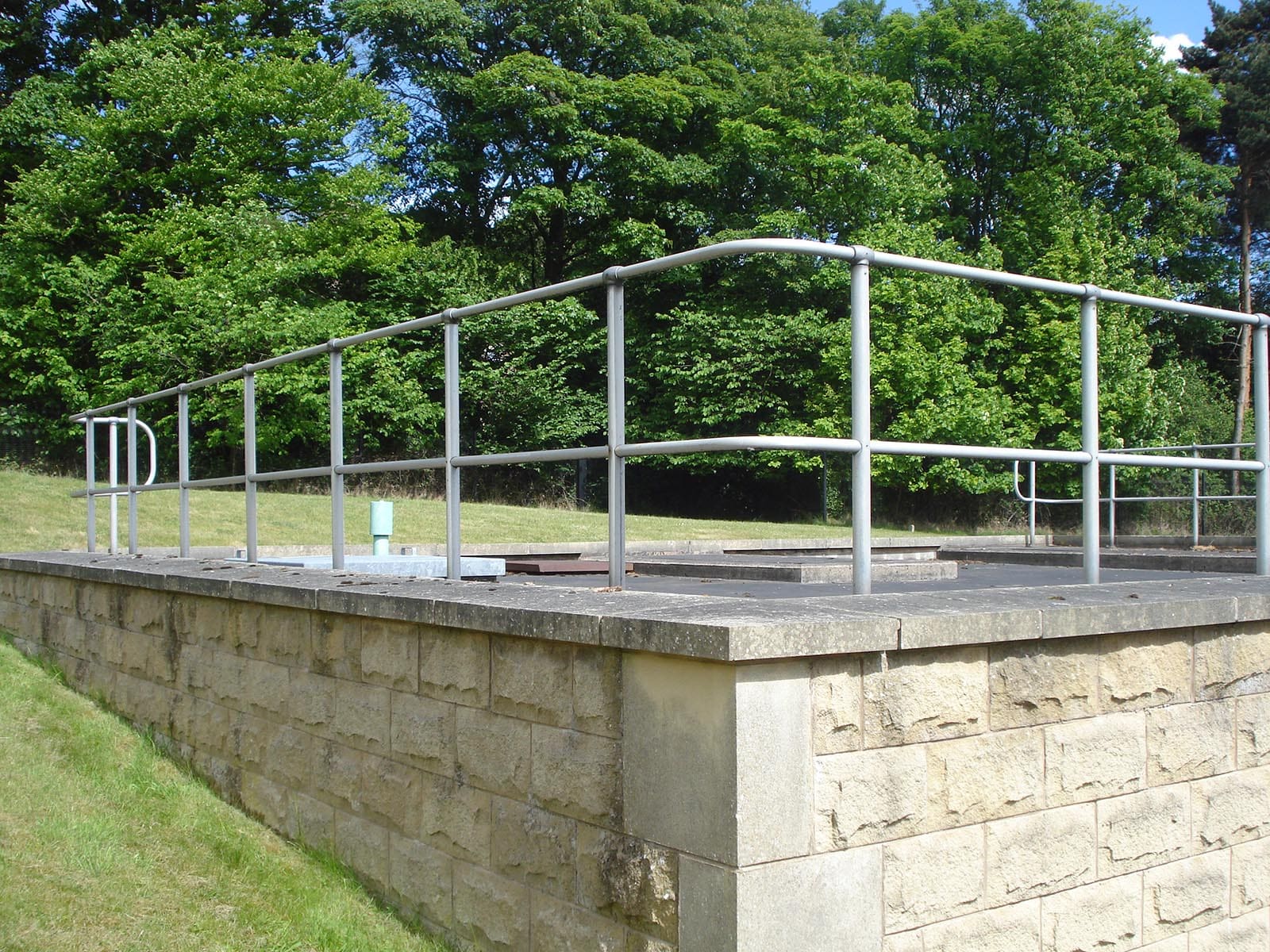

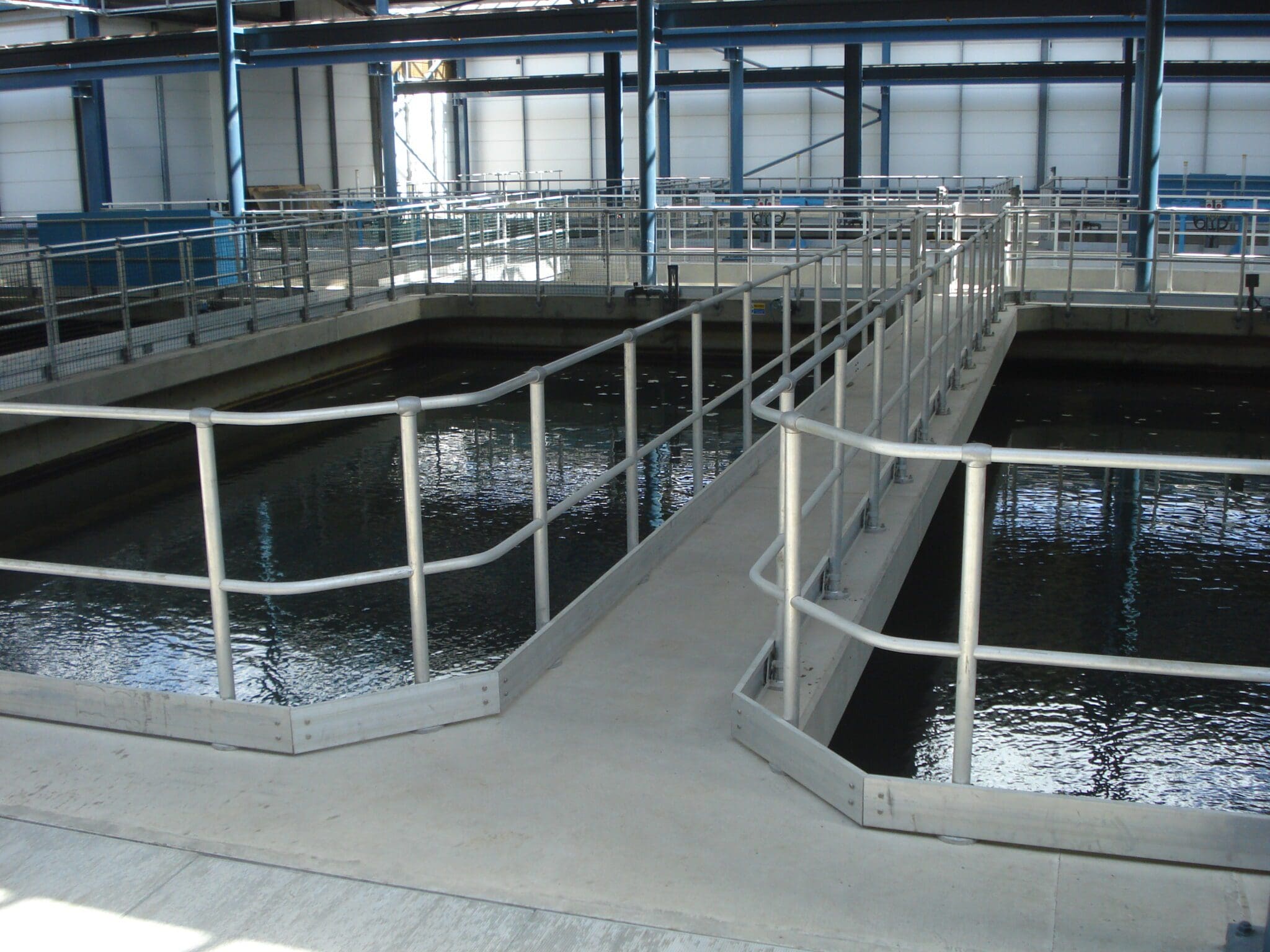

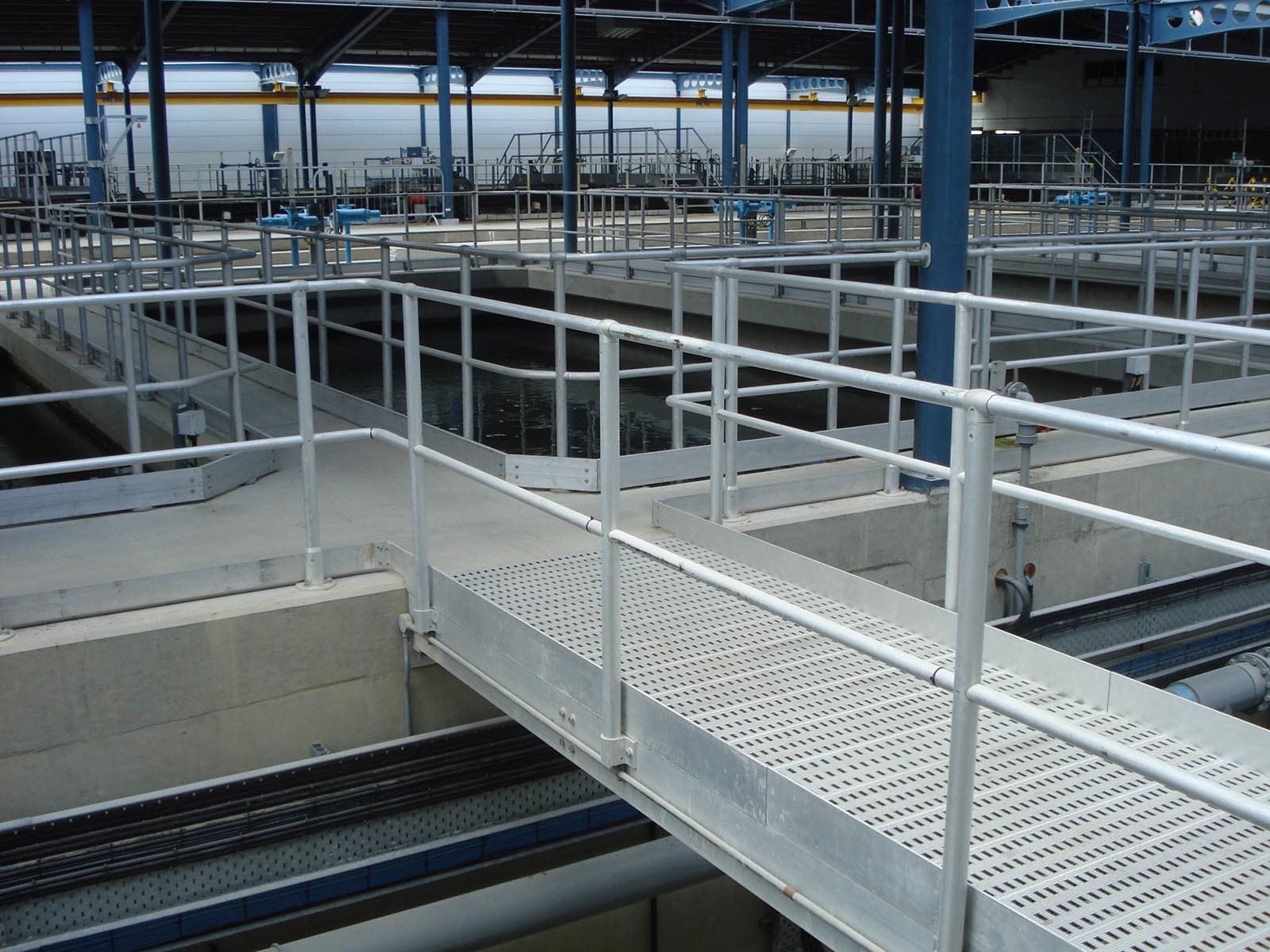

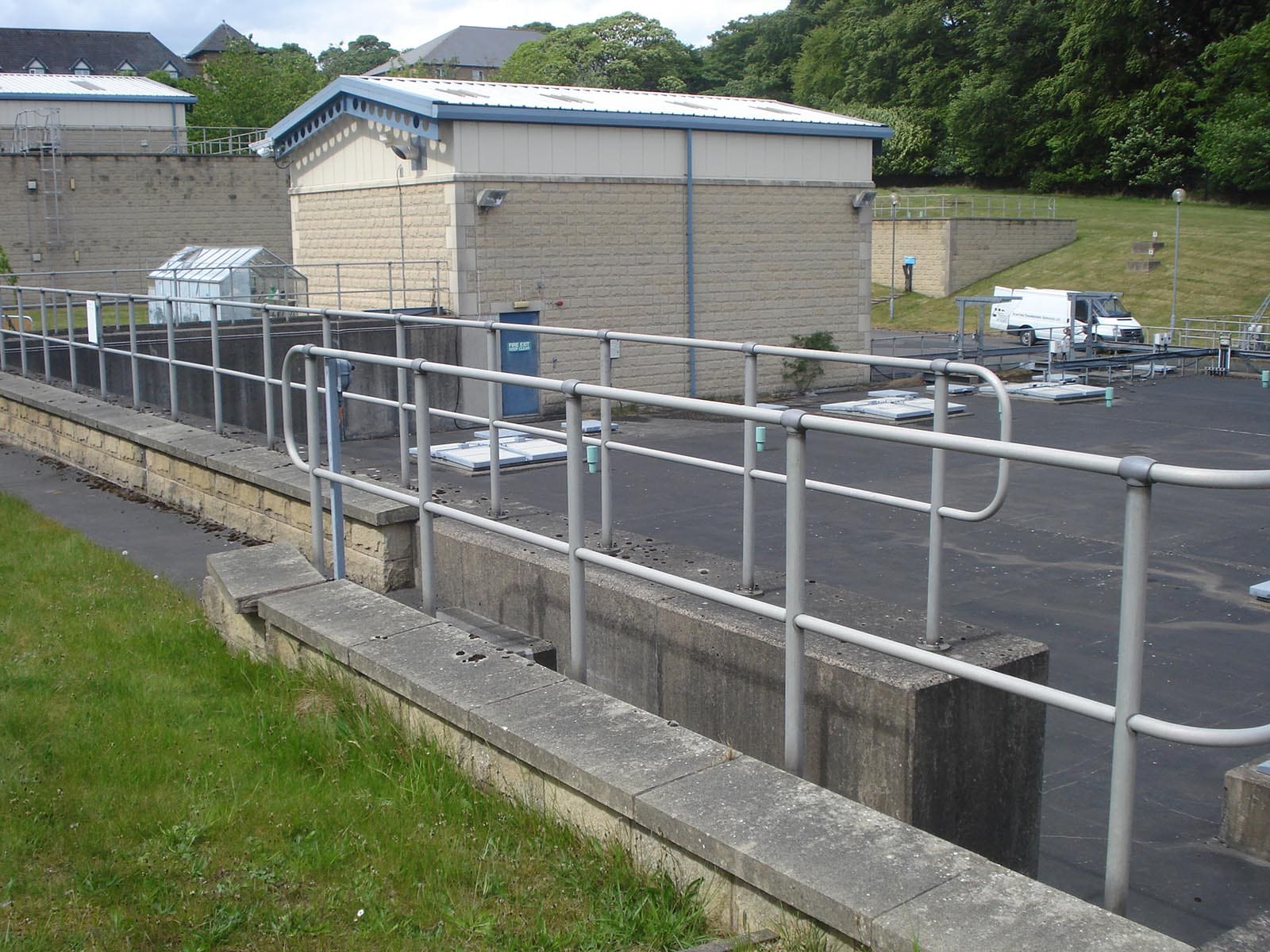

Our Industrial Balustrade features an environmentally friendly design combined with modular construction that minimises noise, waste and energy consumption. Our balustrade is ideal for safety railing, industrial guard rails, adjustable ramp handrails, roof edge protection, standing-seam roof edge protection, access walkways, mezzanine floors and ventilation grilles. It’s ideal for chemical production sites, factories, water treatment facilities and exposed locations such as rooftops and lighthouses.

As well as being 1/3 of the weight of steel for easy installation and manoeuvring, aluminium is DDA compliant, corrosion-free and fully recyclable with high a residual value. Components are designed for ease of assembly utilising mechanical fasteners with smooth top handrail connections to provide tactile comfort. Optional kicking plates are available and fixings can be supplied on your request. All our balustrades and handrails are available as a mill-finished product or with an added element of powder coat to create options with visual contrast.

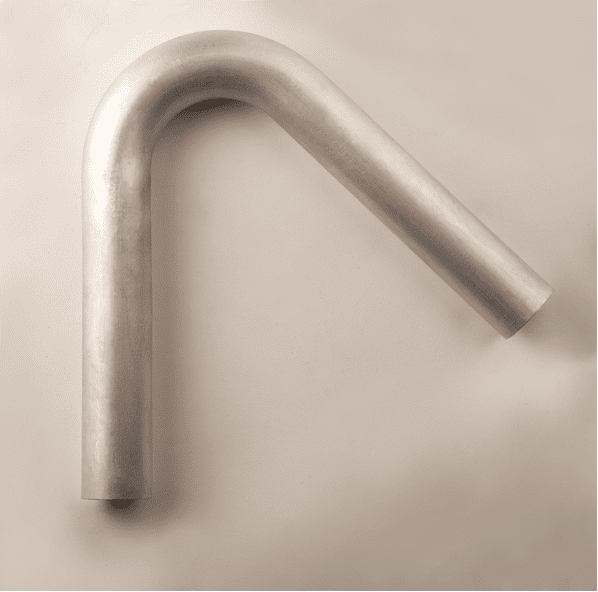

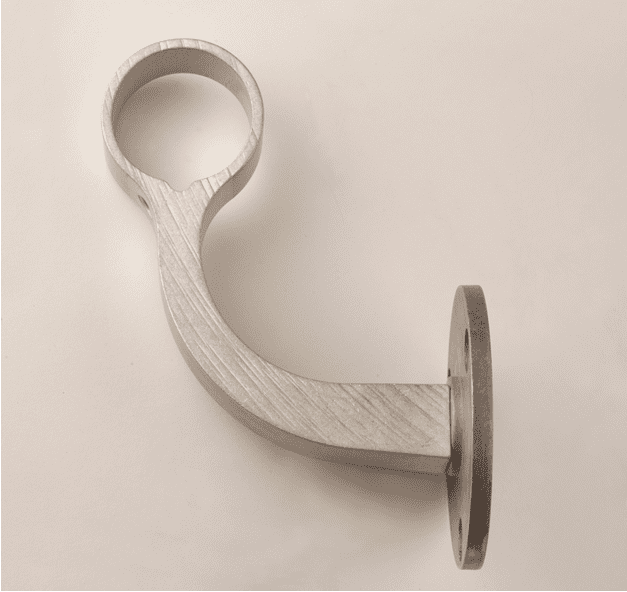

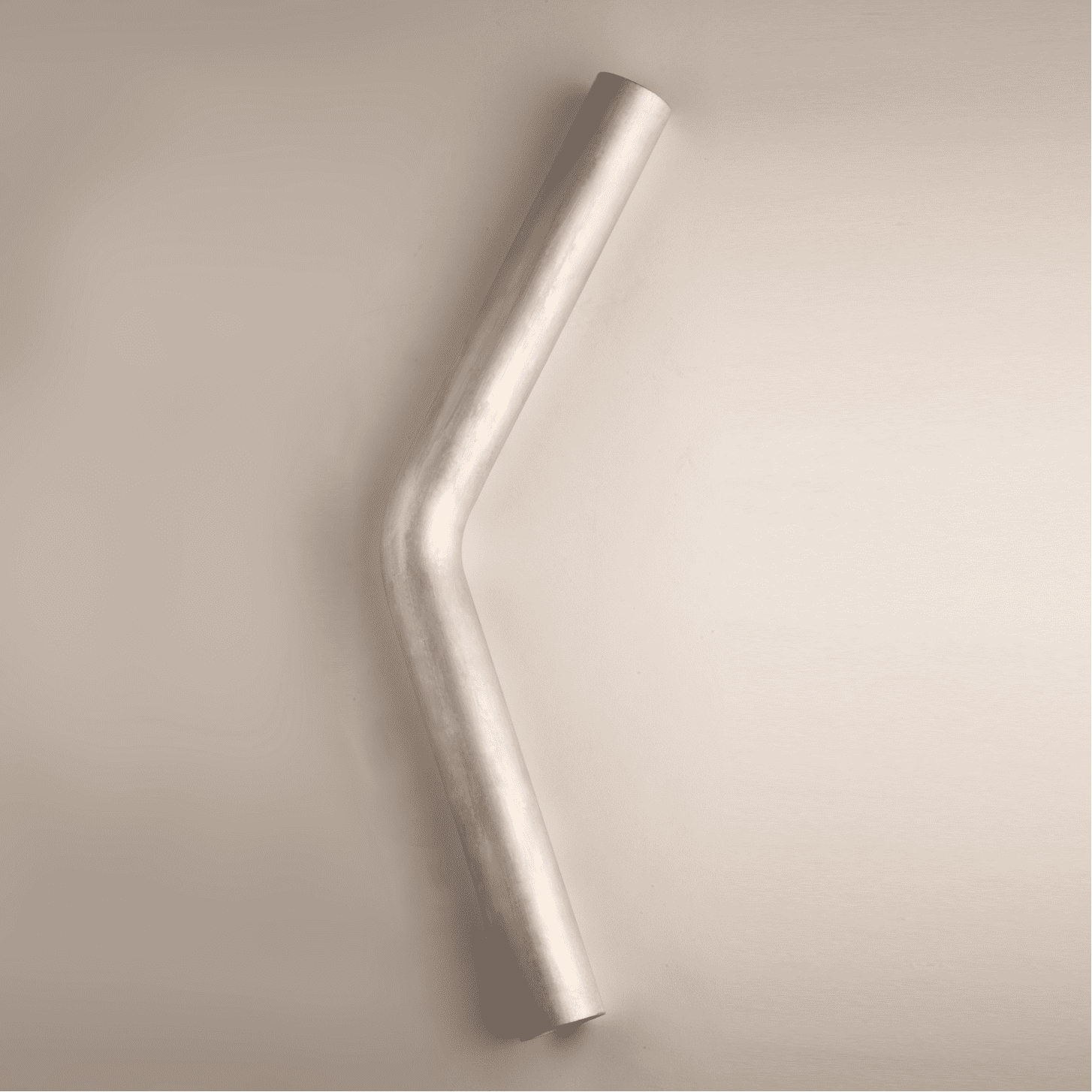

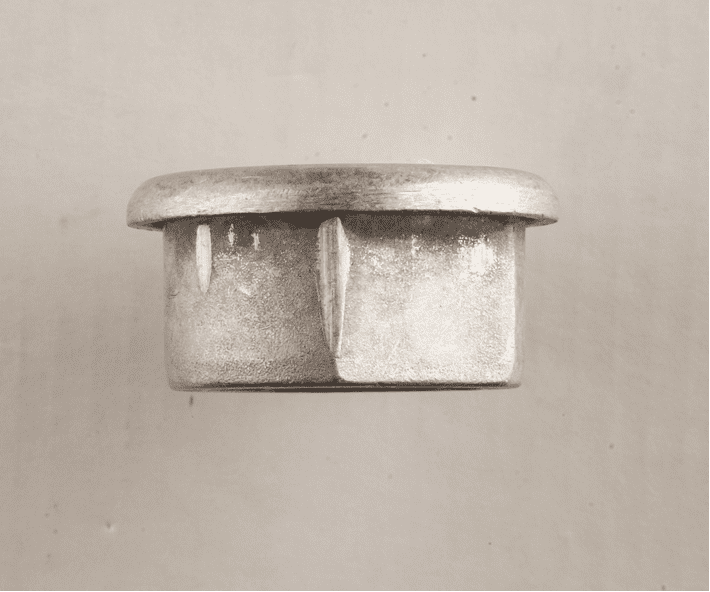

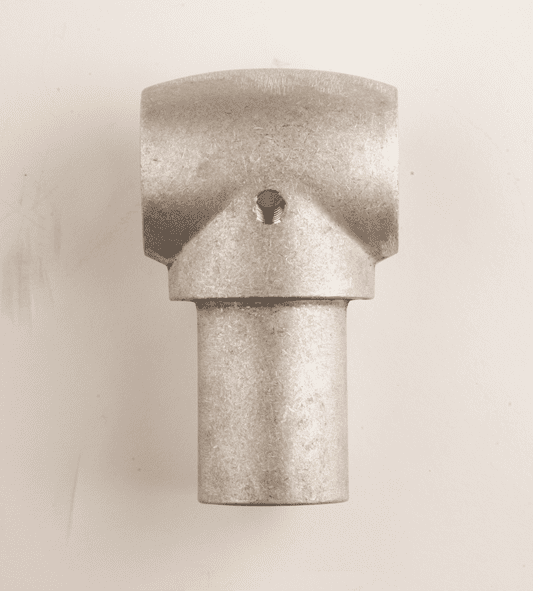

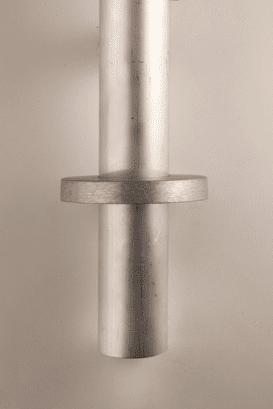

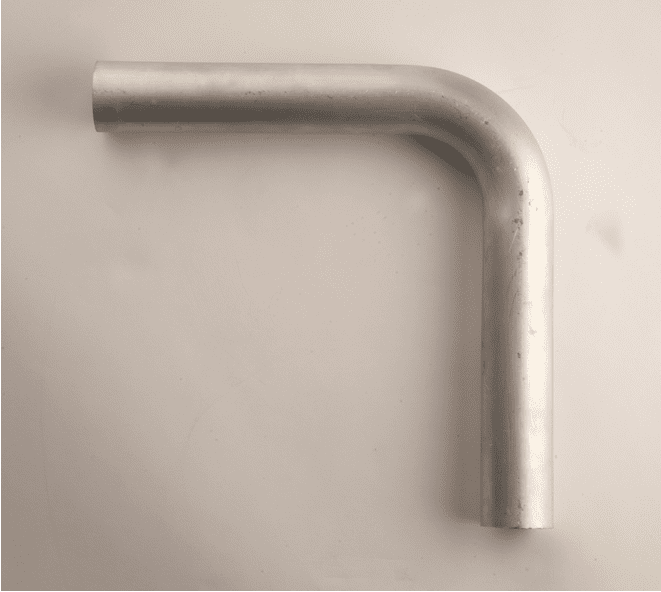

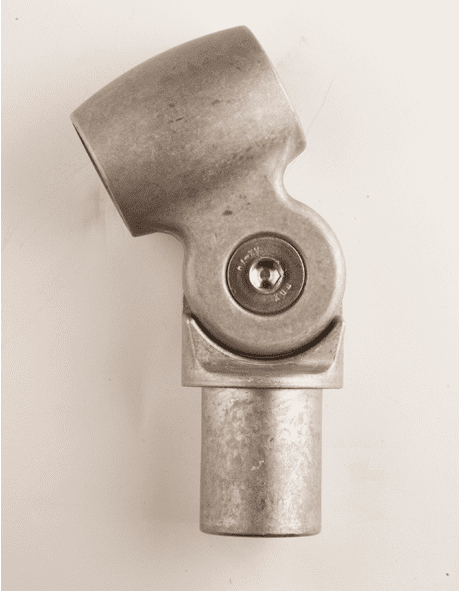

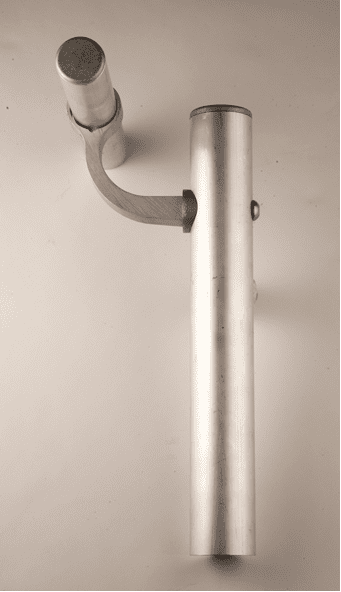

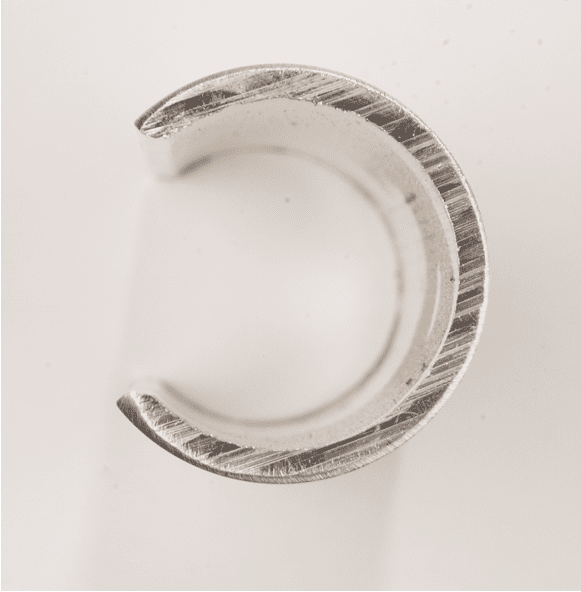

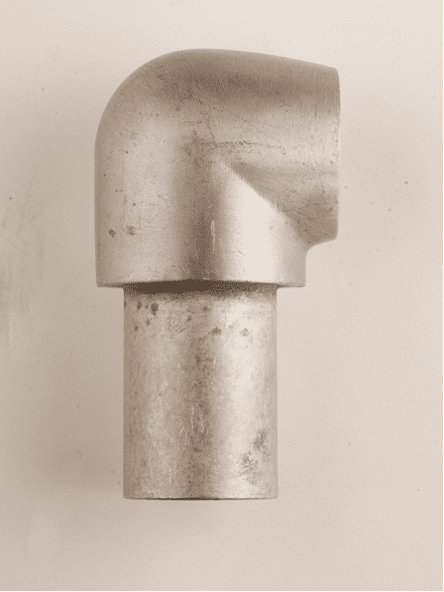

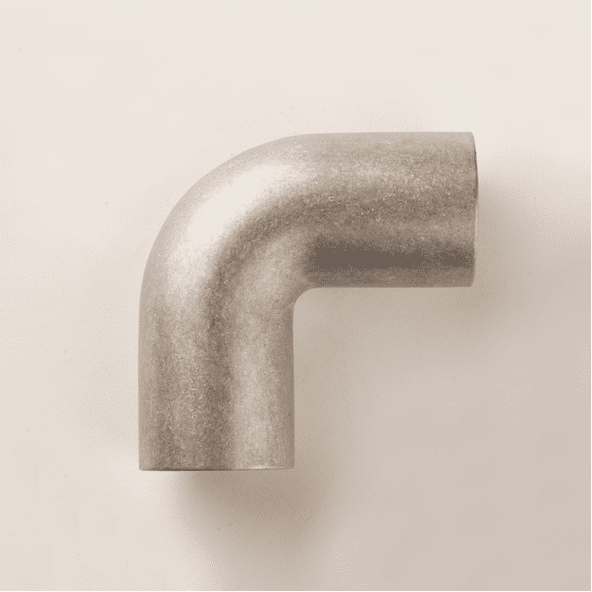

Handrail Components

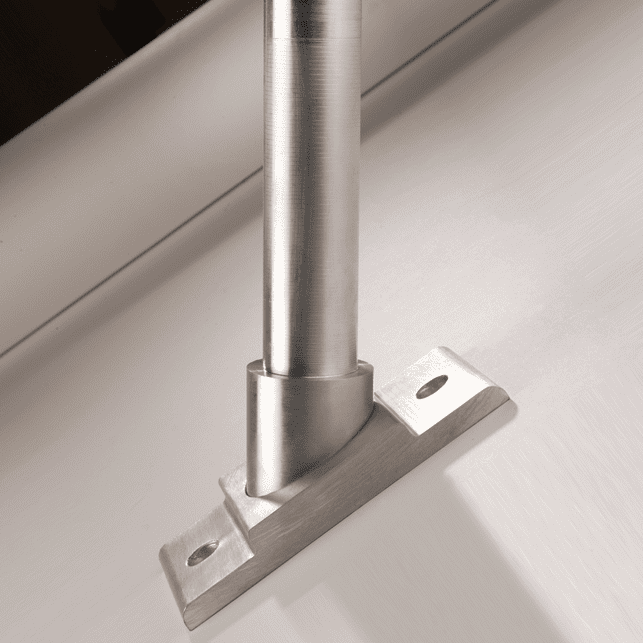

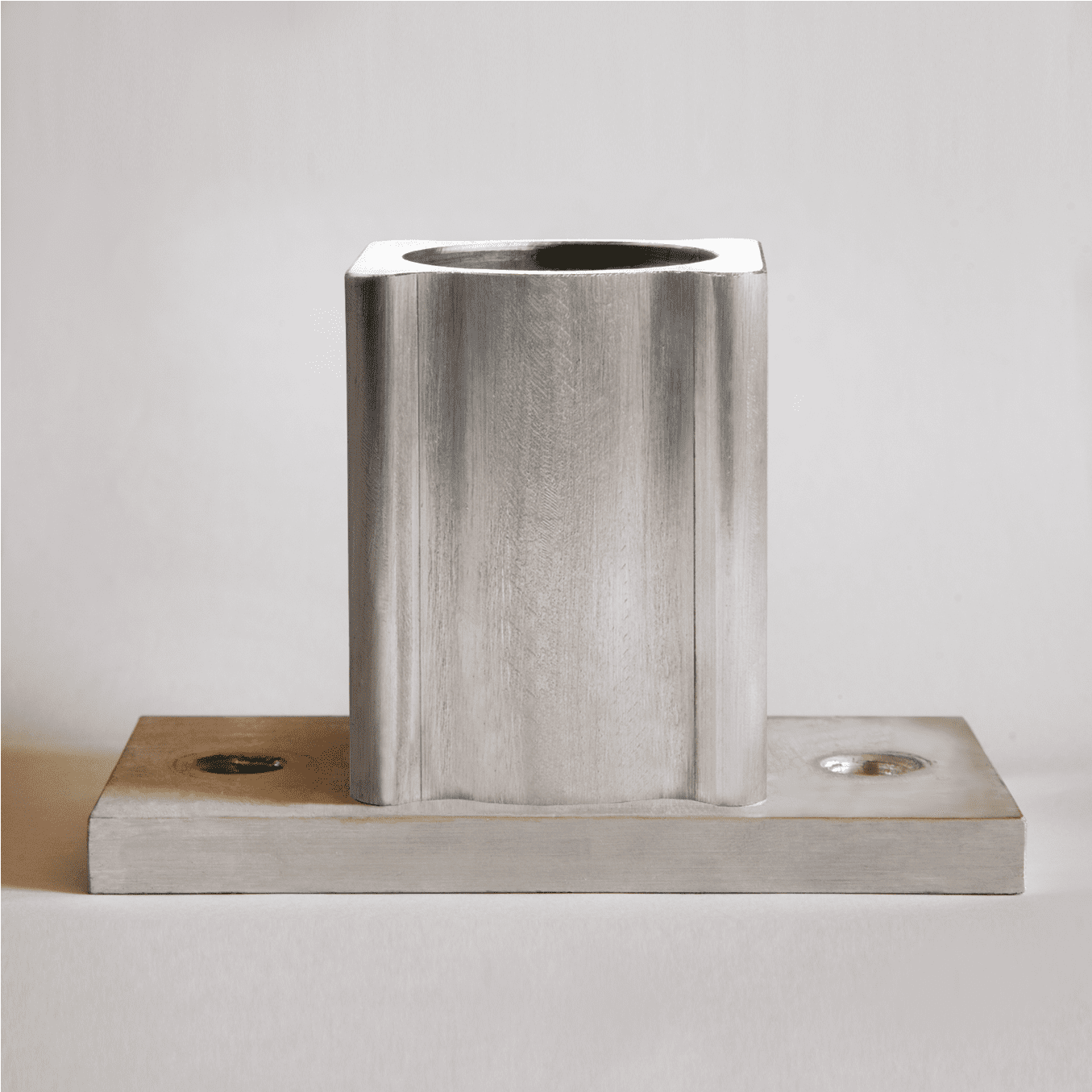

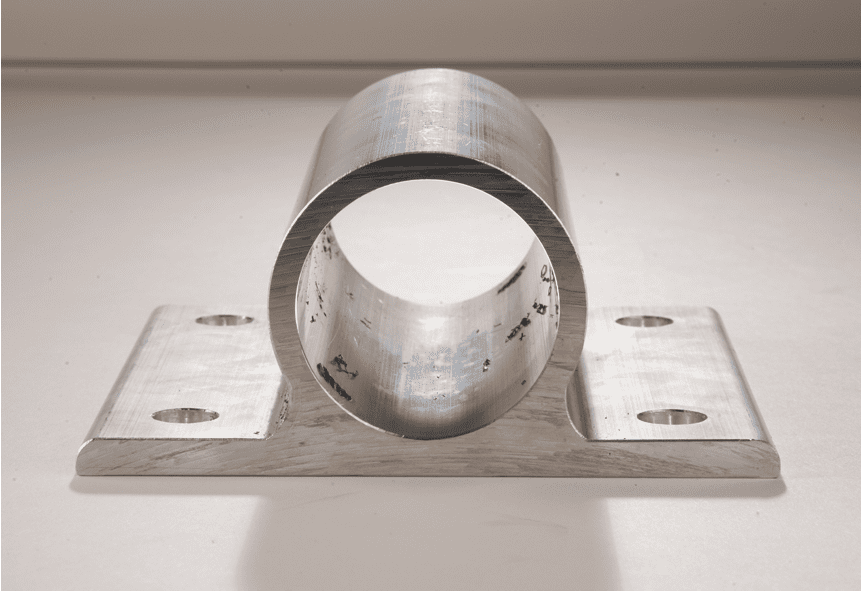

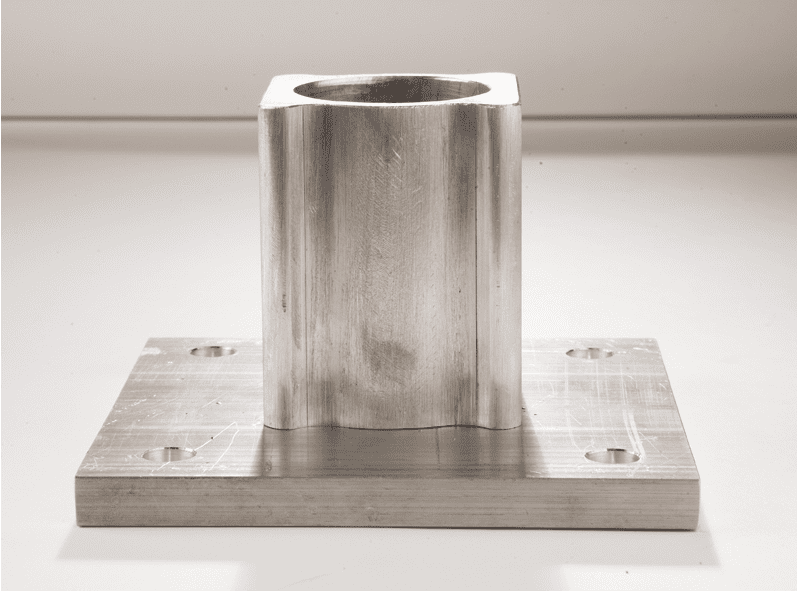

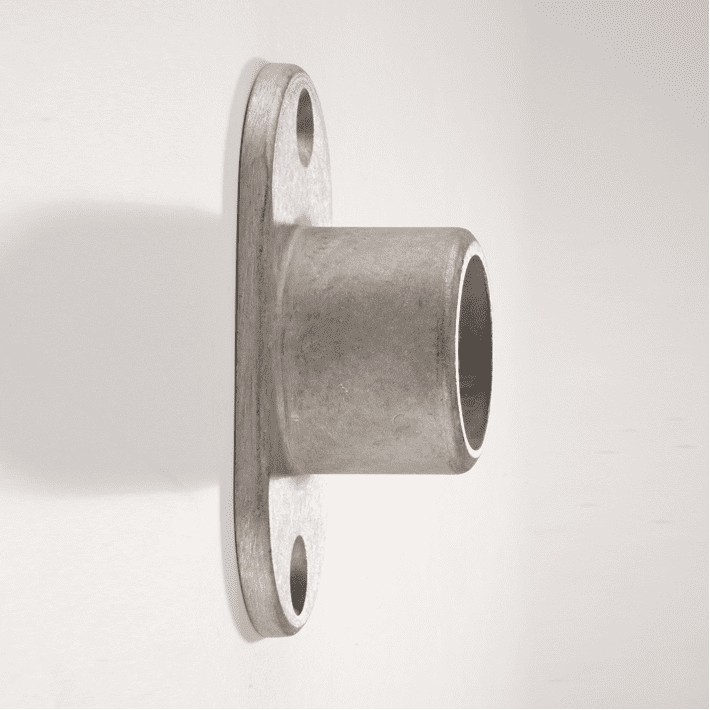

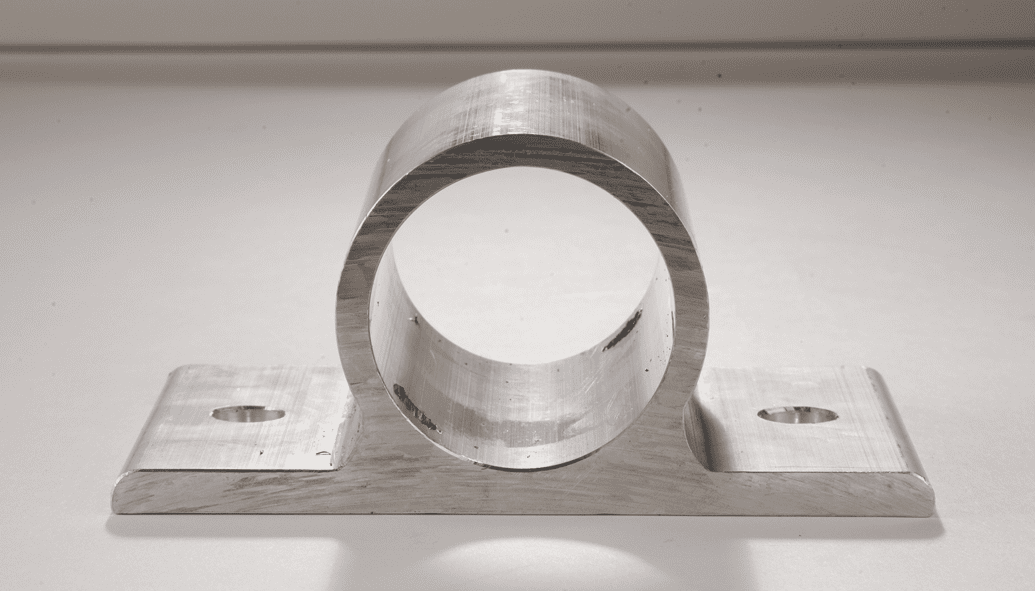

Fixing Details

Ask Us For a Quote

Our friendly, expert team are on hand to speak with you and advise on your requirements.

Neaco Ltd

01653 695721

Technical

01653 695721

FAQ’s

Why would I choose Industrial Balustrade?
Lightweight and hardwearing for harsh environments, our Genesis Industrial handrails are manufactured from Mill Finish aluminium alloy 6063 T4 & T6 and follow the BS EN 755 series. Typically, being 1/3 of the weight of steel for easy installation and manoeuvring.
Why does Neaco use Aluminium?
Aluminium is a great building material for many reasons: it provides maintenance-free durability and is also non-toxic, corrosive-free, non­combustible and 100% recyclable - a particularly useful feature for our Genesis industrial system designed for eco-friendly performance in the harshest environments.
Do neaco install the product as well as supply it?
Yes, we provide a full installation service in addition to technical support and consultation throughout the specification process. Our team of experts is always on hand to assist at every stage.
Do neaco offer bespoke solutions?
Yes, absolutely. Over the years we have worked with numerous architects and designers to incorporate bespoke features outside of our standard specifications, including light fittings to the top of stanchions, etched designs to glass infills and structural glass installed at unusual angles. We pride ourselves on the flexibility and adaptability of our technical support services, so please feel free to discuss your particular requirements with one of our team.
Does Neaco provide curved rails?
Yes, we can provide rolled tube to radius or template.
Castings and tubes seems dissimilar in colour – why is this?
One is cast aluminium, the other is extruded aluminium – they will blend over time as the extruded tube dulls.
Does the system rust or corrode?
No. It is aluminium. Aluminium oxidizes with age.
Do I need to allow for expansion?
Yes. Please allow for expansion joints after each 6-metre length if external.
