Aluminium Balustrade

The Spectrum Range

Our original and most popular balustrade system is precision-engineered from aluminium and powder coated in a variety of solid and metallic colours to meet a wide range of balustrade design needs. Neaco’s Aluminium Balustrade takes advantage of mechanical fixings to produce an architectural solution utilising modularity.

In Our Element

Manufactured from 6063 T4 / T6 Aluminium to the BS EN 755 standard series

Truly Modular

Manufactured off-site to reduce time, disruption and impact on-site to your bespoke dimensions

Non-Combustible

A1 – A2 Fire Rated and fully compliant with BS EN 13501-1

Extremely Durable

Has a design life of 60+ years and comes with our 25 Year Warranty*

Our Aluminium Balustrade is manufactured to in-house drawings to ensure the highest quality end product. It is our original system and it remains our most widely specified balustrade product.

SIGN UP TO OUR ARCHITECT’S LOUNGE TO EXPLORE ALL OUR TECHNICAL INFORMATION



Environmentally Friendly

100% recyclability manufactured from 77% recycled aluminium

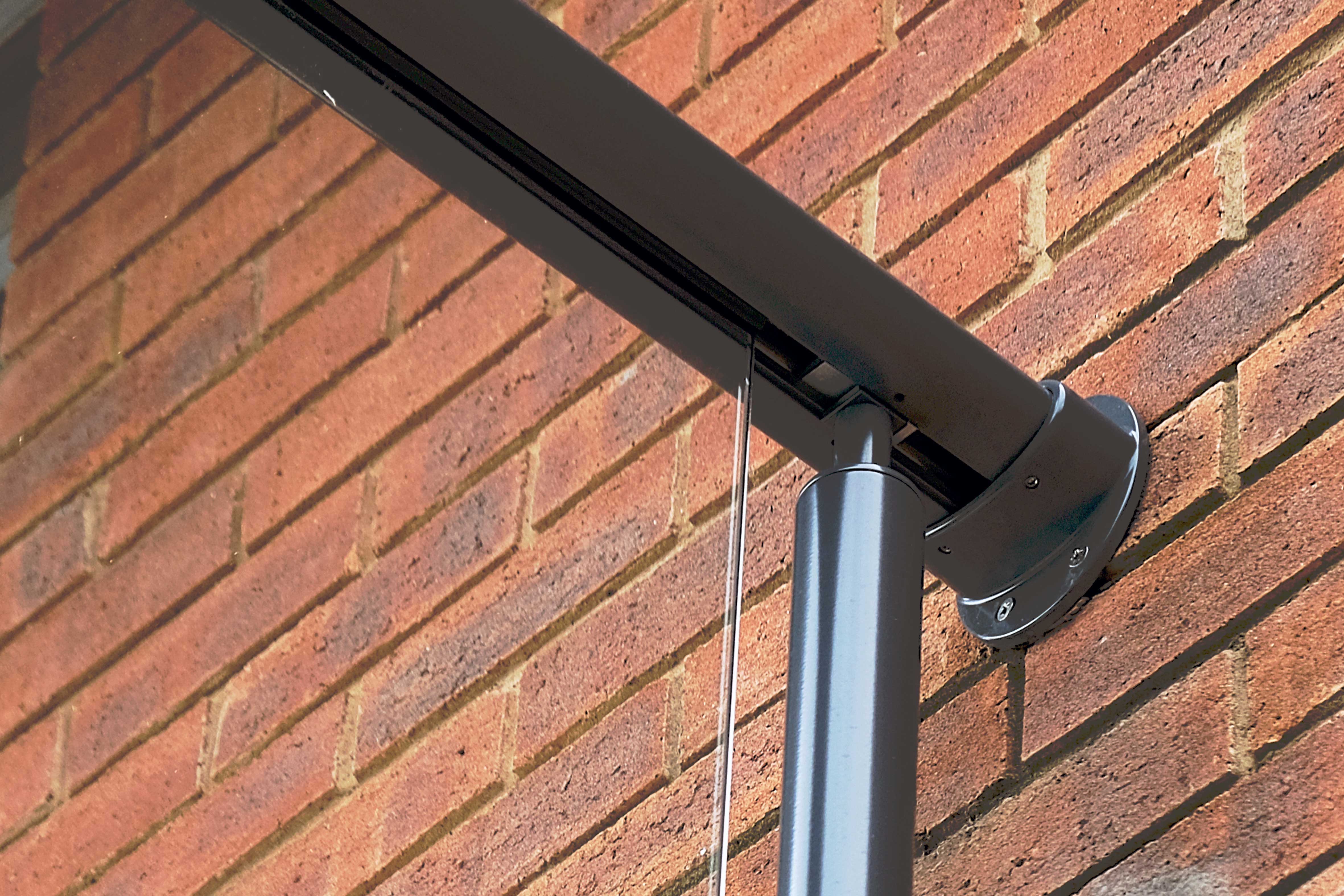

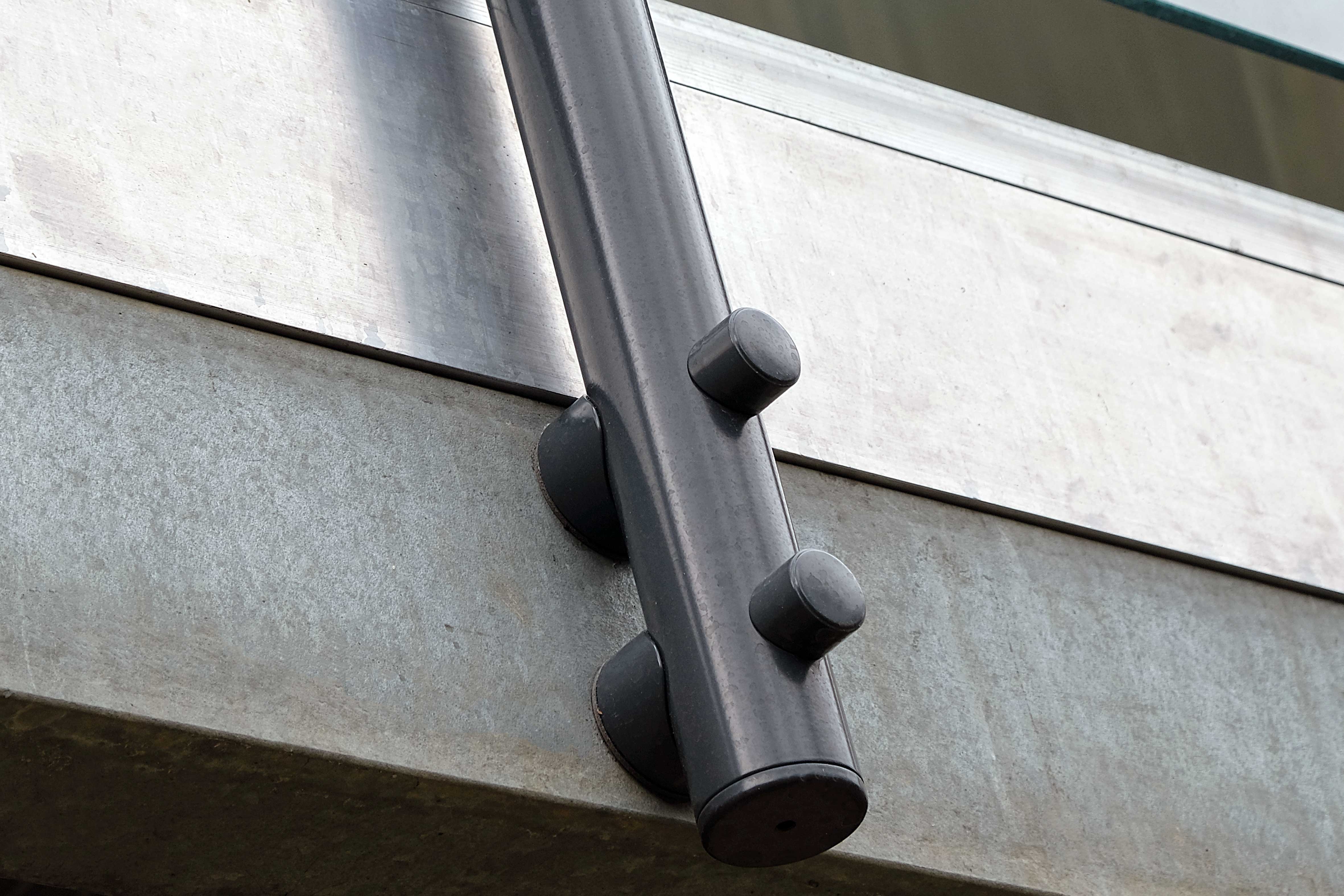

Concealed Fixings

Components are connected internally making this product anti-tamper and weld free

Loadings

Designed to suit the following kN/m loadings: 0.36, 0.74, 1.5, 3.0

Range of Colours

Powder Coated Aluminium in a variety of RAL colours

Build Your Aluminium Balustrade

Use our custom Product Builder tool to create your ideal aluminium balustrade product. Just select your options, and download a detailed specifications pack!

Stanchion

Centric
Quad
Slim

Connector

Stems
Conns
Stems
Conns

Fixing

Flat Base
Grout In
Side Fixed
Flat Base
Grout In
Side Fixed
Flat Base
Side Fixed

Infill

Glass
Perforated
Vertical
⌀22 Horizonal
⌀38 Horizonal
⌀50 Horizonal
Glass
Perforated
Vertical
⌀22 Horizonal
Glass Bends
Perforated Bends
Glass Stems
Perforated Stems
⌀22 Horizonal

Precision Engineered

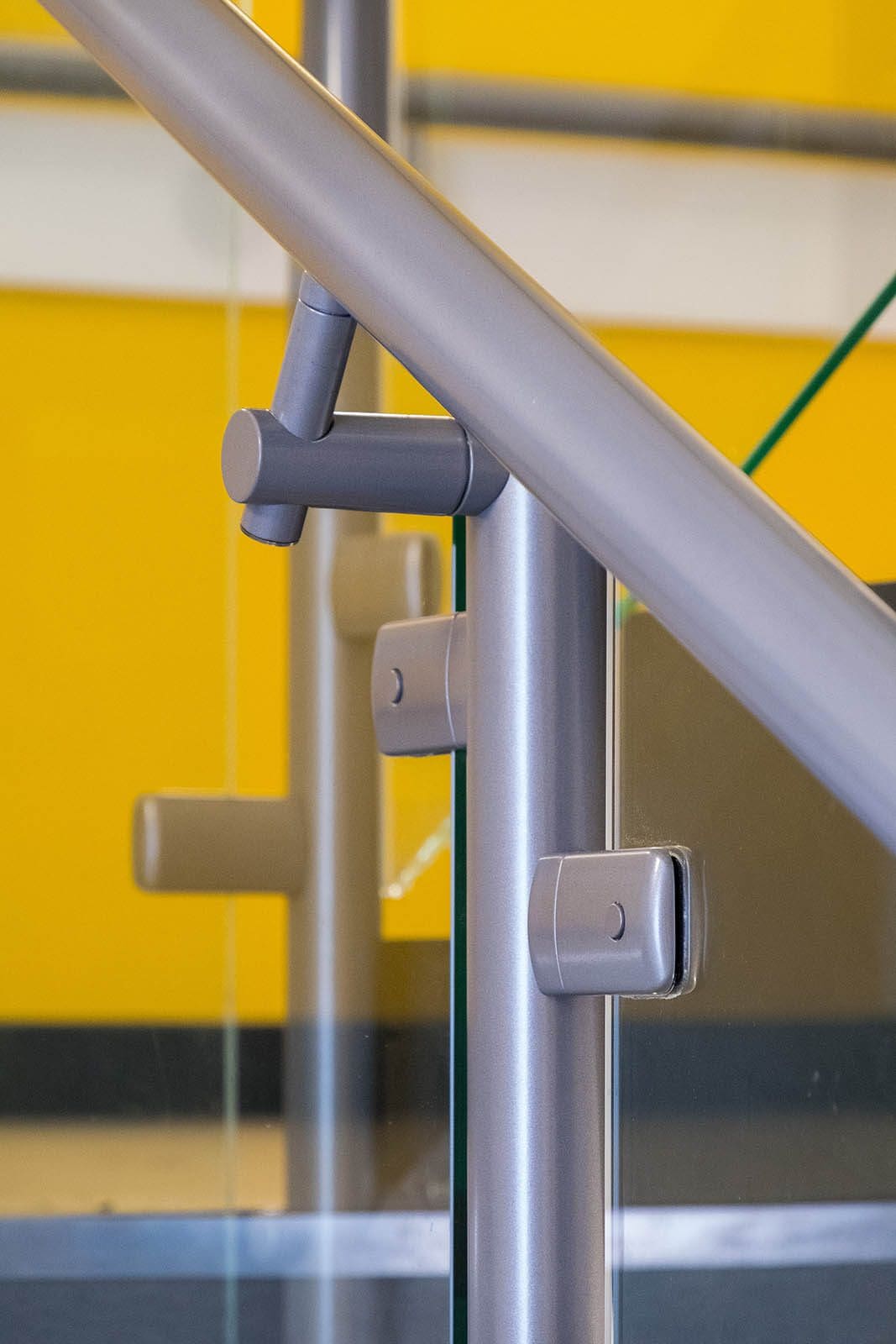

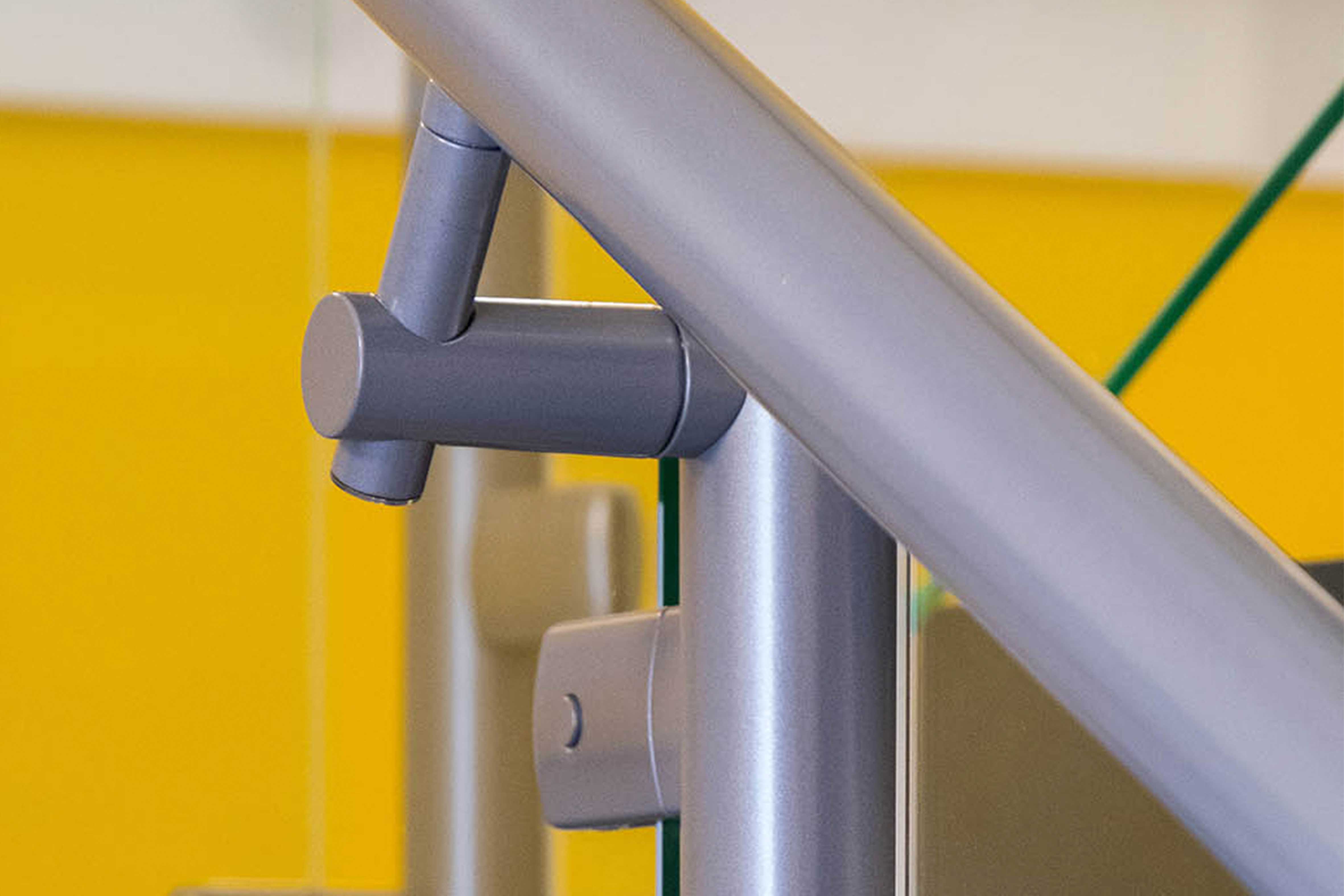

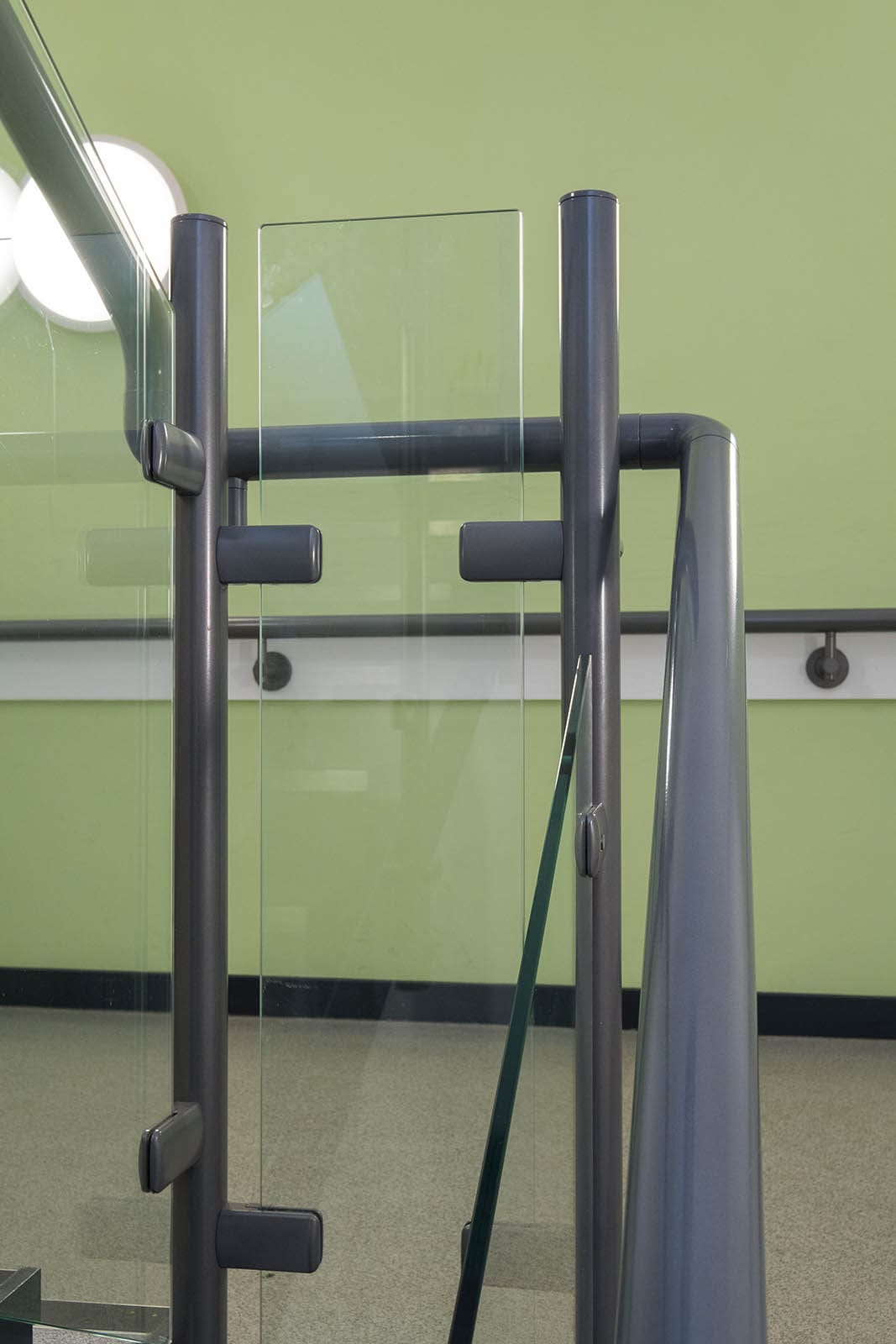

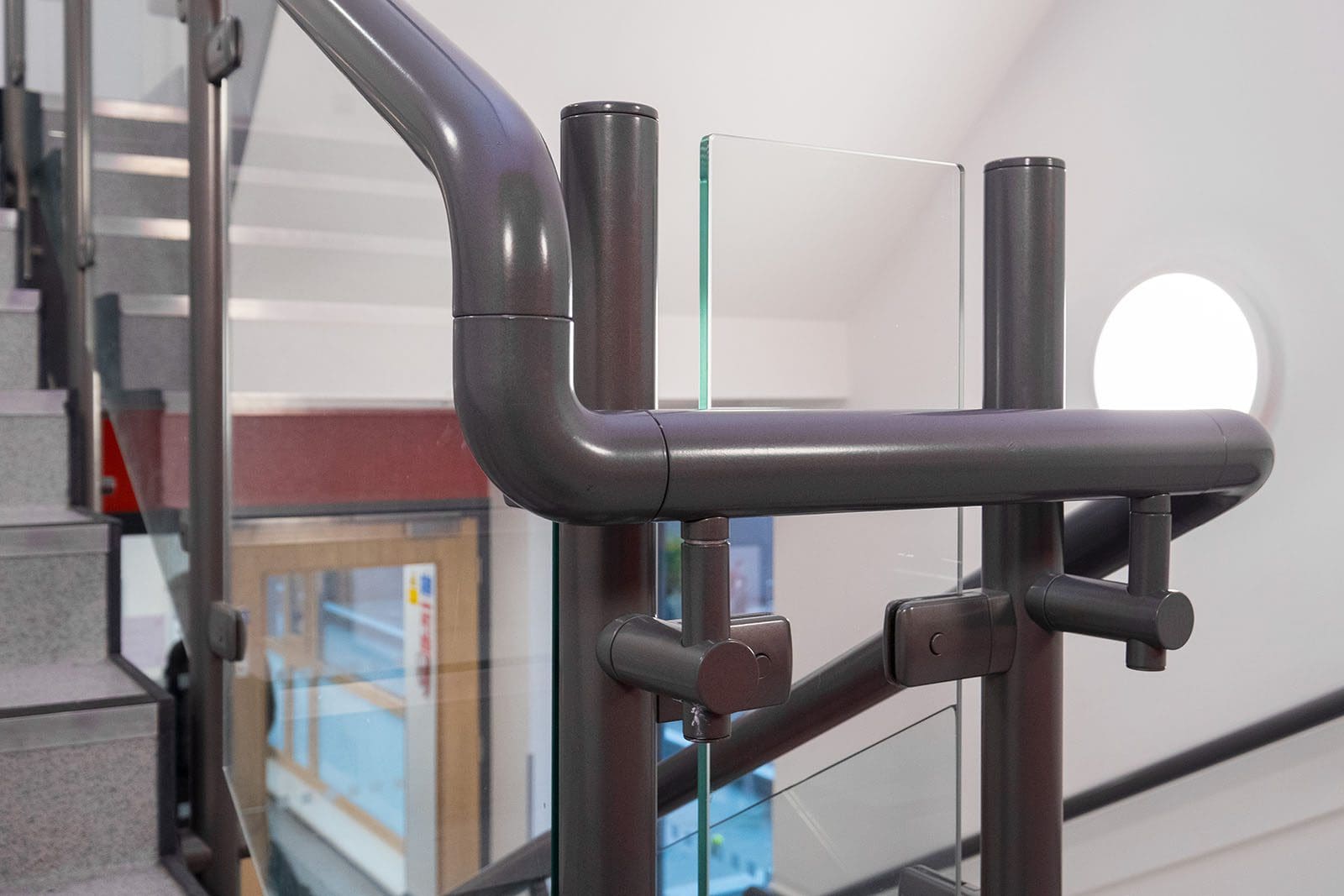

The modular system offers the versatility to meet virtually any design requirement, no matter how complex. It is engineered to close tolerances, with quality-formed bends eliminating the need for unsightly mitred joints and onsite fitting. Component parts are mechanically secured with concealed fixings, requiring no welding and ensuring rapid assembly on-site (all fixings are supplied).

Bespoke finishes are available, you can choose to combine our aluminium balustrade and our stainless-steel balustrade within our Duplex system here.

Heptonstall School

Neaco’s Spectrum balustrade system continues to be a popular specification in the education sector following its installation as part of the £1.7 million redevelopment of Heptonstall Junior Infant & Nursery School in West Yorkshire.

Go To Project

Standard Colour Range

Our aluminium balustrade top rail can be manufactured in mill finish or powder-coated in a wide range of RAL colours. It can be offered in either nylon or polyester, nylon being a preferred application on superior chemical resistance, providing the highest level of abrasion resistance. Polyester is favoured for weather and UV resistance, providing more excellent colour stability than nylon, which will fade faster with prolonged exposure to sunlight. Bespoke RAL colours can be achieved here at Neaco as we have our own in-house powder coating plant. The powder coating gives the balustrade a satin-smooth finish which is non-chip, permanent, hardwearing and abrasion-resistant.

Jet Black
RAL 9005
Anthracite Grey
RAL 7016
Agate Grey
RAL 7038
Sapphire Blue
RAL 5003
Ruby Red
RAL 3003
Golden Yellow
RAL 1004
White Aluminium
Metallic
Tungsten
Metallic
Chromium
Metallic
Light Oak
Timberline
Dark Oak
Timberline

Ask Us For a Quote

Our friendly, expert team are on hand to speak with you and advise on your requirements.

Neaco Ltd

01653 695721

Technical

01653 695721

They produced a cost-effective solution and installed it to a high standard. The company provided proactive customer support throughout and I will recommend using Neaco for future projects.”

Tony Clohesy | Clugston Construction

FAQ’s

How many different Balustrade products do Neaco manufacture?
We have around 150 different Balustrade combinations but we are always open to meet your requirements if they follow building standards.
Can I request a specification for a project?
Of course, please contact us, or alternatively look in the Architect Lounge where we have standardized variant BIM Models for Architects only.
Why do Neaco manufacture in aluminium?
Aluminium is a great building material for many reasons: it provides maintenance-free durability and is also non-toxic, corrosive-free, non-combustible and 100% recyclable - a particularly useful feature for our Genesis industrial system designed for eco-friendly performance in the harshest environments. The permanent finish of Neaco’s nylon powder coating - a standard specification on most Spectrum systems - provides smooth, clean lines for comfortable touch and high aesthetic value. It is also worth noting that our stainless-steel systems provide many similar benefits.
Why do Neaco state our handrails are “warm-to-touch”?
'Warm-to-touch’ is a well-known phrase when it comes to handrails as it is an important building regulation when a handrail is utilised in high-traffic environments. Document K of the building regulations outlines that handrails should not “become excessively cold or hot to touch” (Ref 1.36 e, pg. 15). This is reinforced by section 5.10.5 of BS 8300. The concept is that handrails provide support on stairs or ramps, however, if the environment is subject to extreme temperatures and the handrail conducts this temperature, then this may cause reluctance to use the handrail and therefore cause a safety risk.
What is a Duplex System?
It is a combination of Aluminium and Stainless Steel in a balustrade system. This means the toprails could be Stainless Steel while the stanchions could be Aluminium. Please see the Duplex section if this is what you are requiring.
What glass types are available?
A clear 10mm thick toughened safety glass panel is typically used. Other glass we can provide is 12-21.5mm thick toughened or toughened laminated glass. We can also offer options of colour tinting and etching to meet your design aesthetics. As an optional extra, we can heat soak each glass panel which accelerates crystallisation, reducing the risk of potential breakages when the glass is in situ.
Does Neaco Install as well as Supply?
Yes, we provide a full installation service in addition to technical support and consultation throughout the specification process. Our team of experts is always on hand to assist at every stage.
Do Neaco offer bespoke solutions?
Yes, absolutely. Over the years we have worked with numerous architects and designers to incorporate bespoke features outside of our standard specifications, including light fittings to the top of stanchions, etched designs to glass infills and structural glass installed at unusual angles. We pride ourselves on the flexibility and adaptability of our technical support services, so please feel free to discuss your particular requirements with one of our team.
