Stainless Steel Balustrade

The Spectrum Range

Our stainless-steel balustrade is the perfect choice for high-end aesthetics, combining the natural sheen and material quality of stainless steel with precision-engineered detail for the highest specification. Its clean, sharp intersection lines are created by true unidirectional polishing.

Stainless Steel

Engineered from High grade 316 & 304 cast components and extrusions

Non-Combustible

A1 Fire Rated and fully compliant with BS EN 13501-1

Extremely Durable

Has a design life of 60+ years and comes with our 25 Year Warranty*

Like all Spectrum systems, its modular system offers the versatility to meet virtually any design requirement, no matter how complex.

Environmentally Friendly

Recyclable and manufactured from recycled materials

Loadings

Designed to suit the following kN/m loadings: 0.36, 0.74, 1.5, 3.0

Hard Wearing

Continuous protection of the metal

Corrosion Free

Corrosion-resistant steel alloys

Stanchions

Centric
Quad
Slim

Infills

Toughened Glass
Perforated Panel
Ø22 Horizontal Rail
Ø50 Horizontal Rail
Tension Wire

Fixings

Base Fixed
Grout Fixed
Side Fixed

Connectors

Connector
Stem Connector

Toprail

Tubular
Ovular
Offset

Wallrail

Bend Bracket
Stem Bracket
Thin Bracket

Centric is our original stanchion, offering smooth, classic styling with an optional stem bracket. Centric is a highly flexible option with the ability to adapt to most angles or bends.

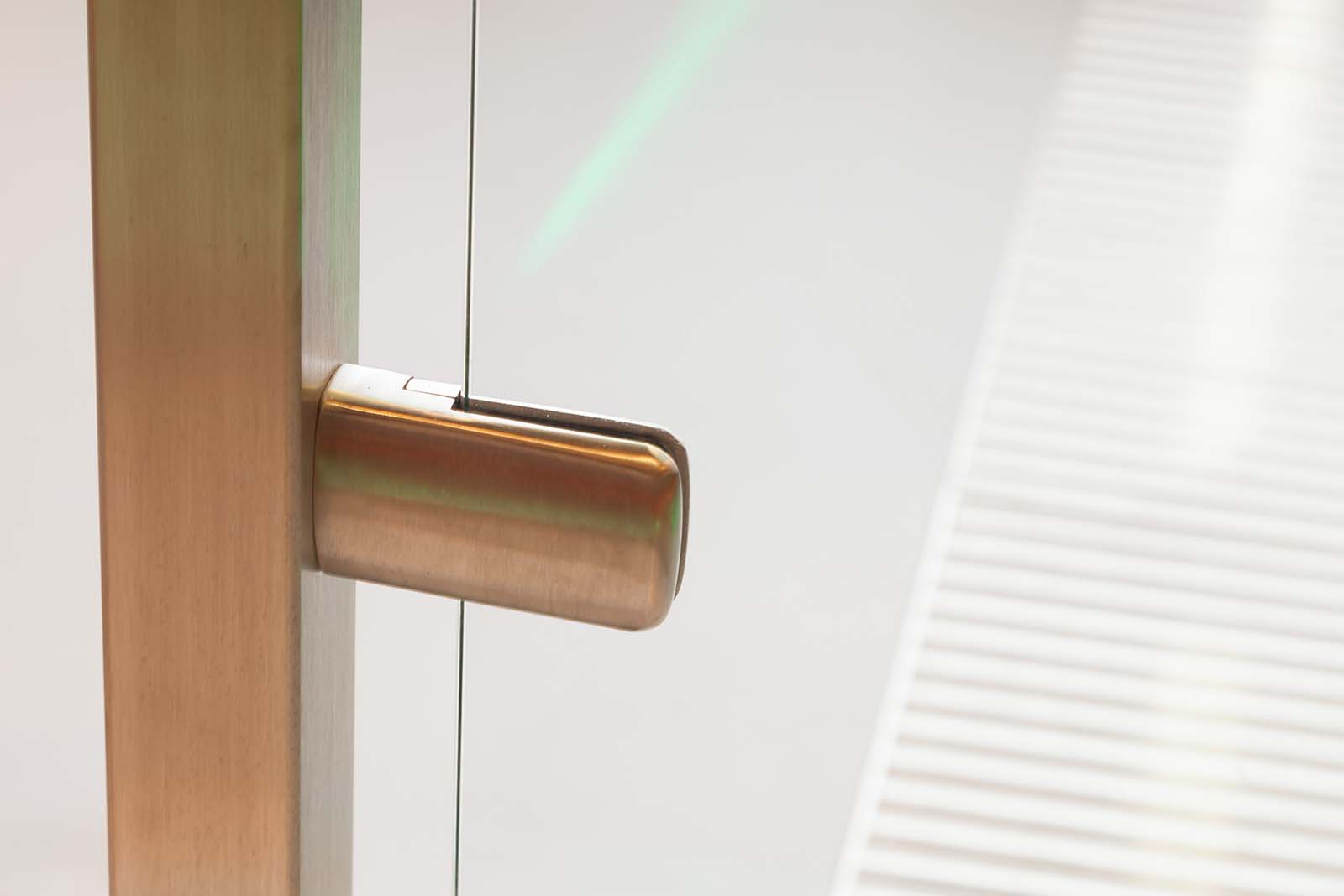

If you want sharp, clean looks, Quad's square profile is an excellent choice. Its contemporary style has made it a popular specification for high-end projects.

Slim is a superb choice for design schemes which require sleek, high-end aesthetics. Slim's clean, minimalist appearance has made it a popular specification for many prestigious projects.

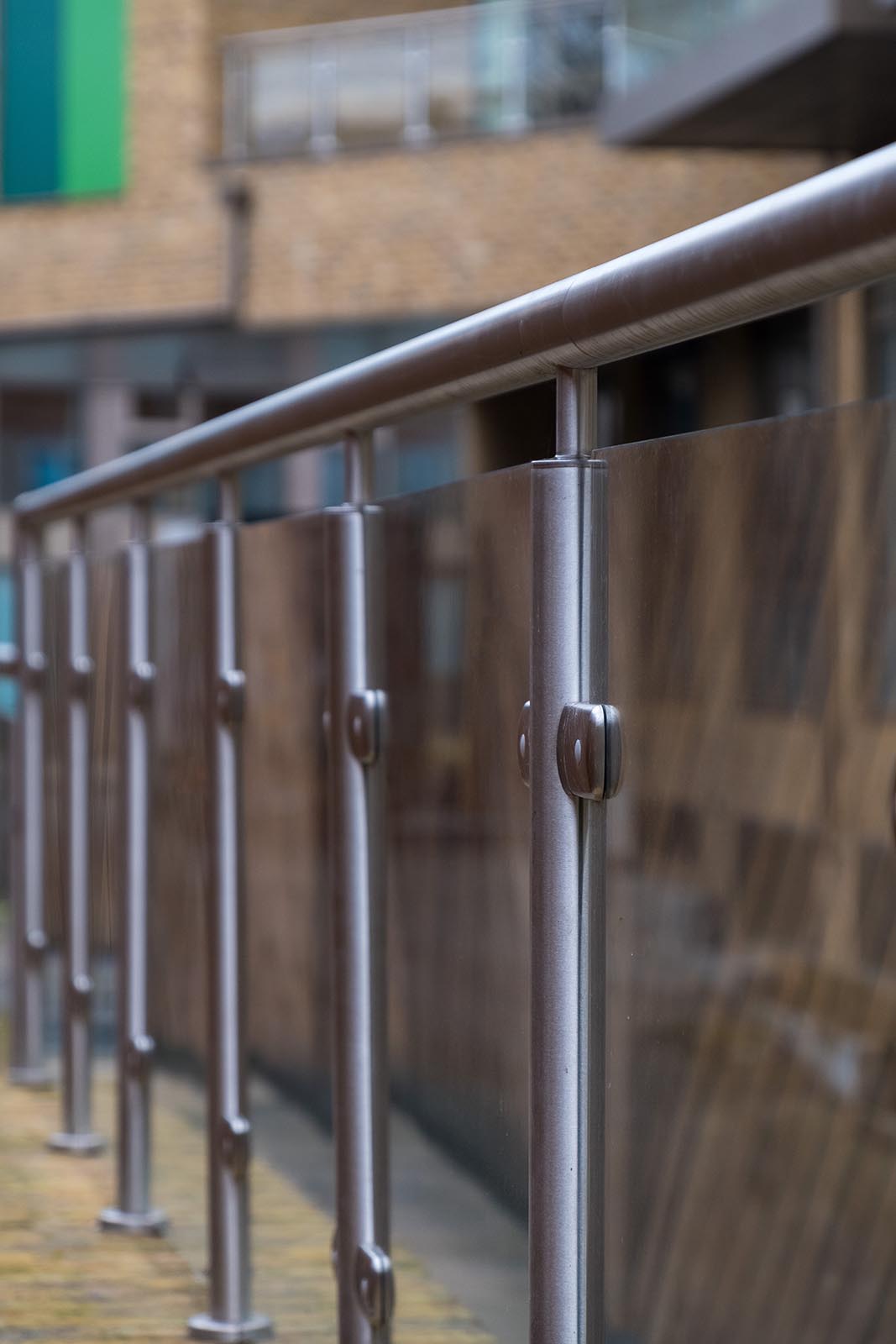

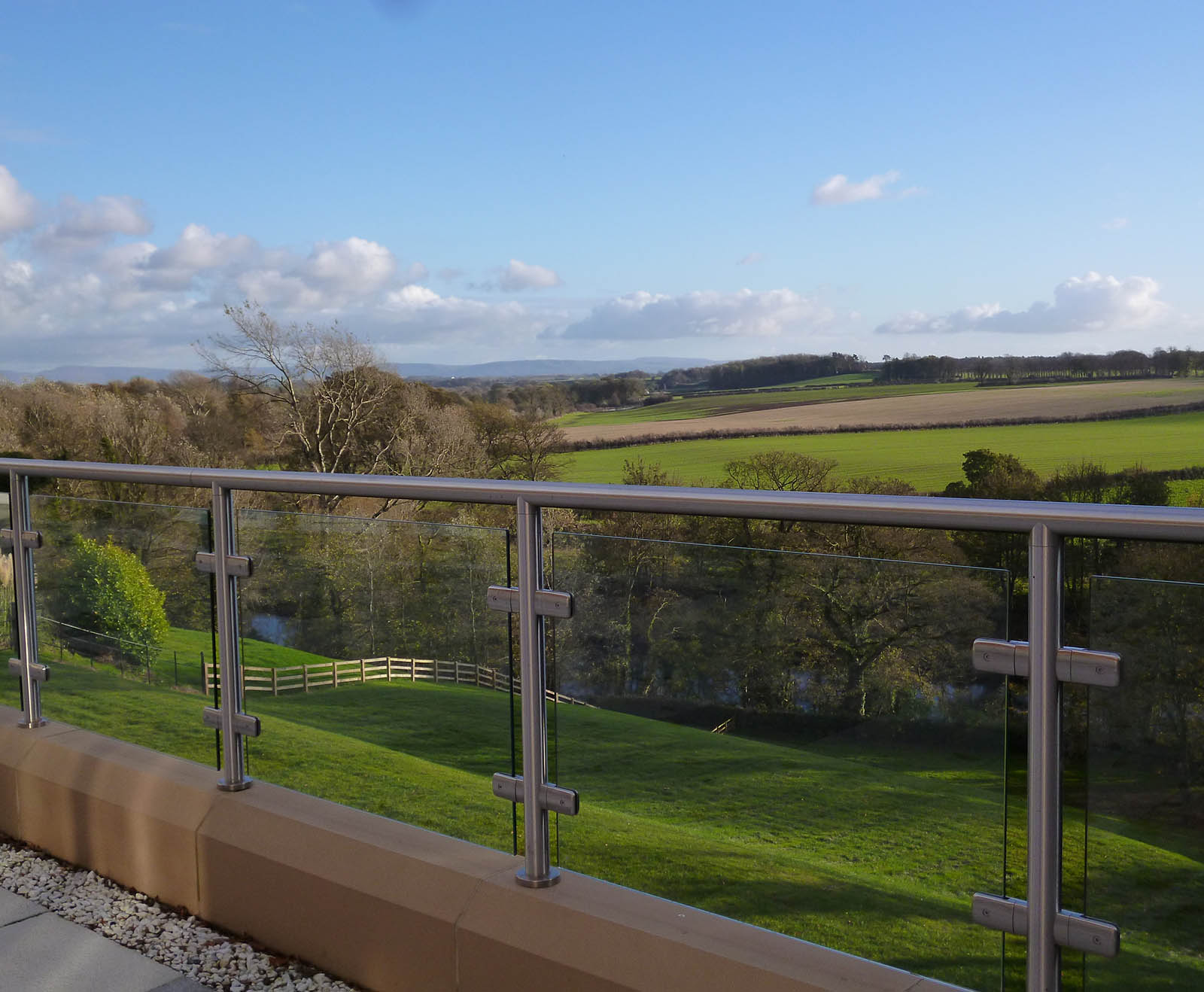

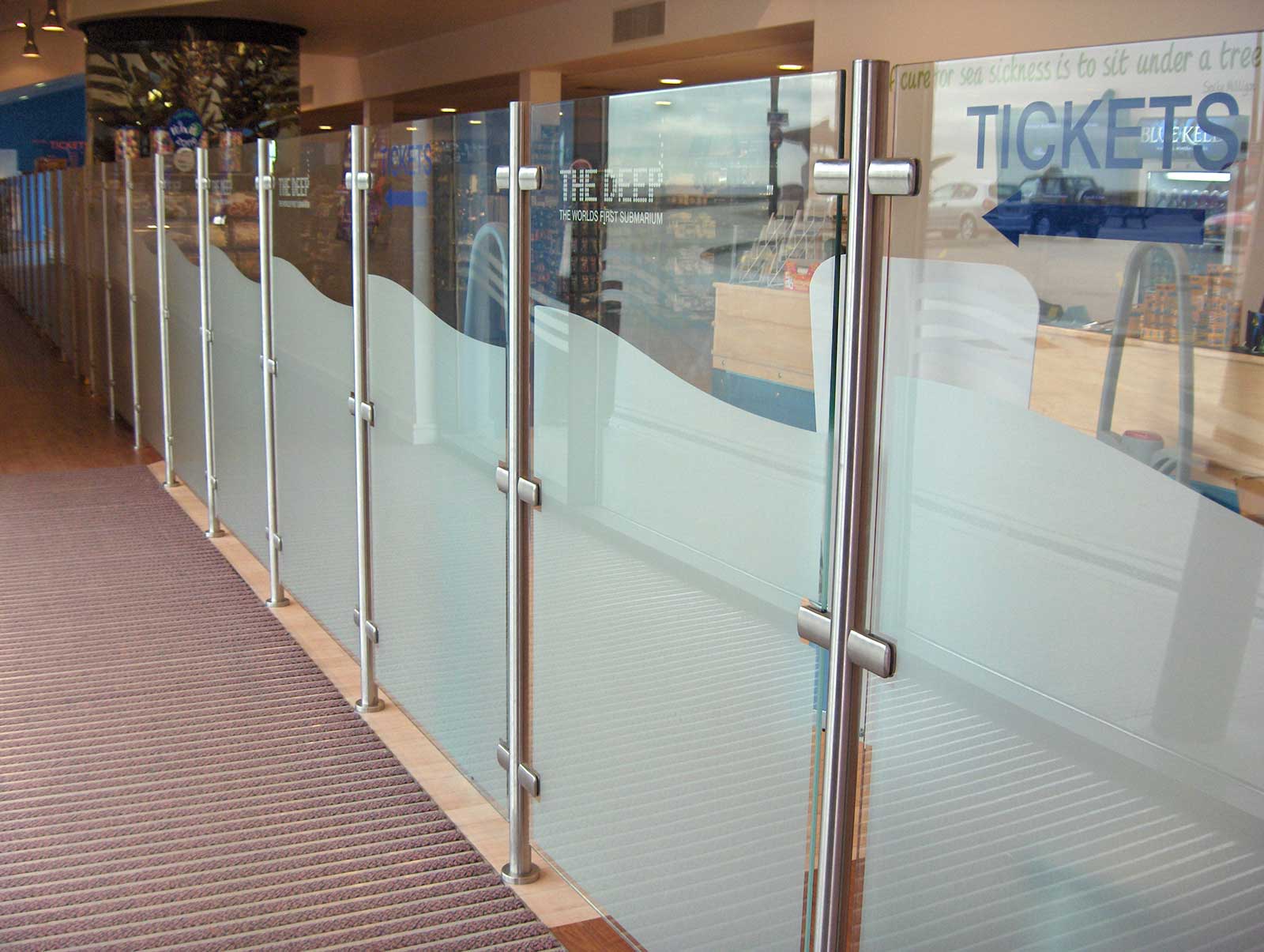

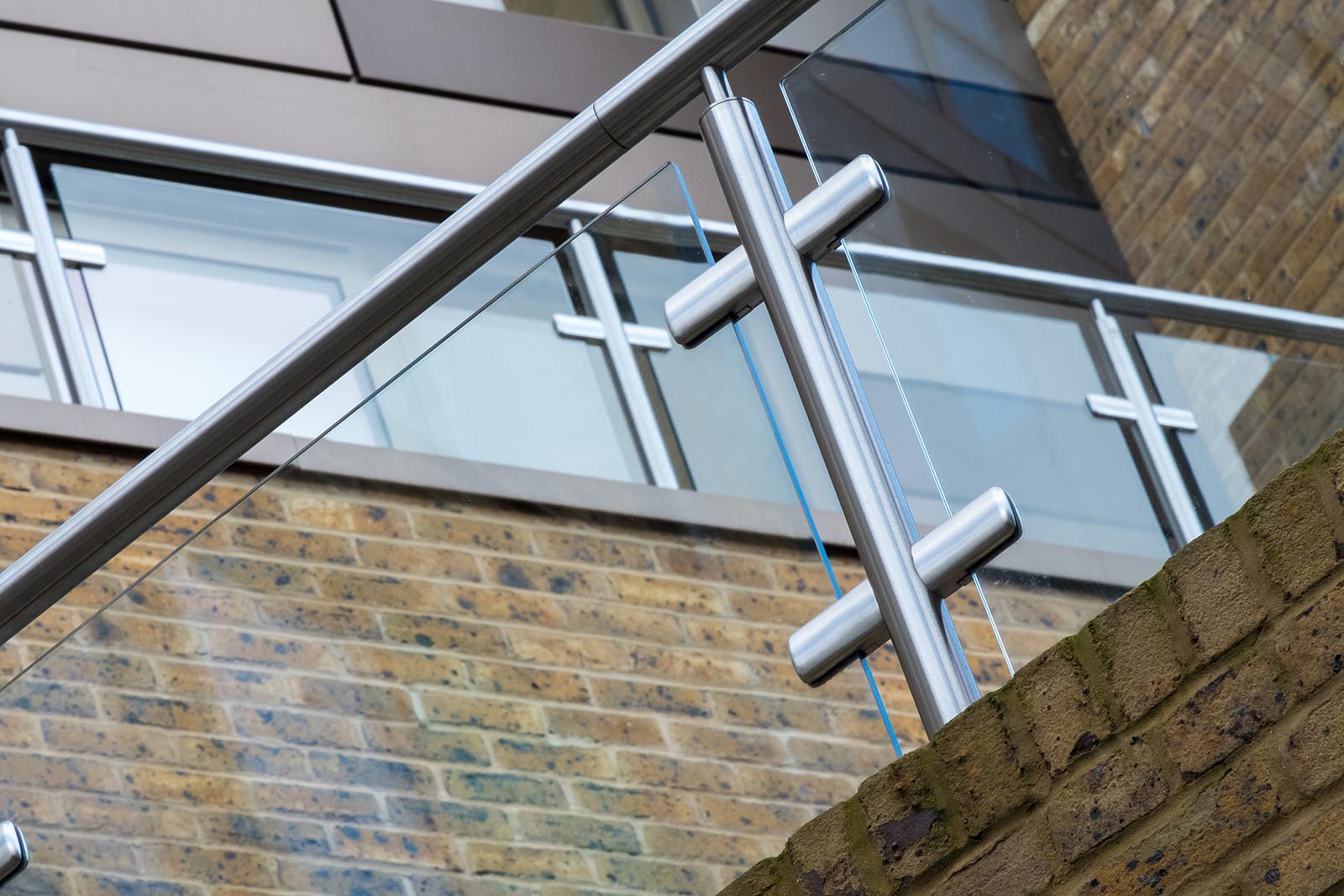

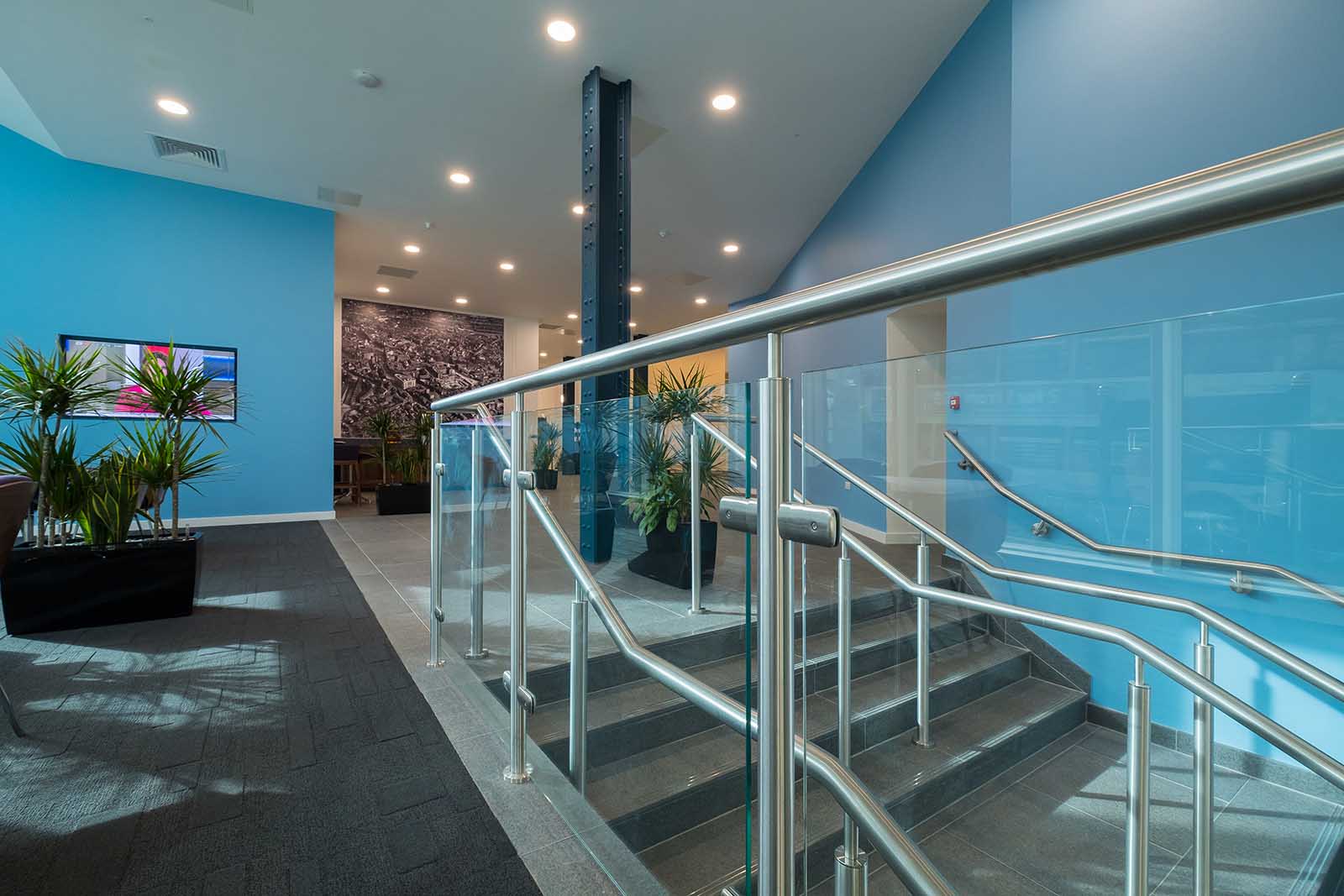

Tested in accordance with BS EN12600 Class 1, toughened safety glass panel infills can be clear or tinted depending on your needs or we could even create a Bespoke Etched Design if your aesthetics desire it.

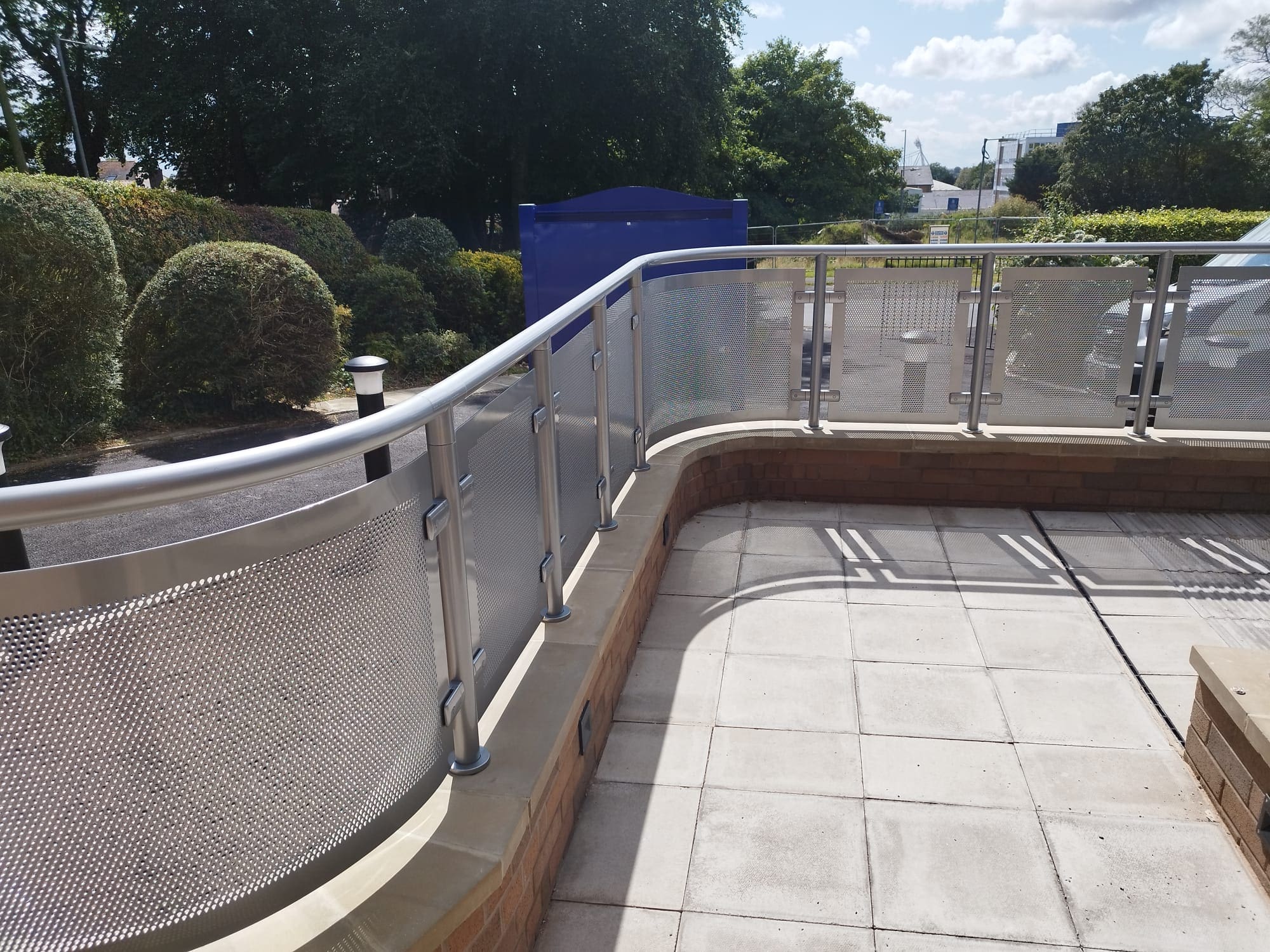

Perforated panel infills can be powder coated in a range of colours and finishes. They provide a robust and durable option for high traffic areas.

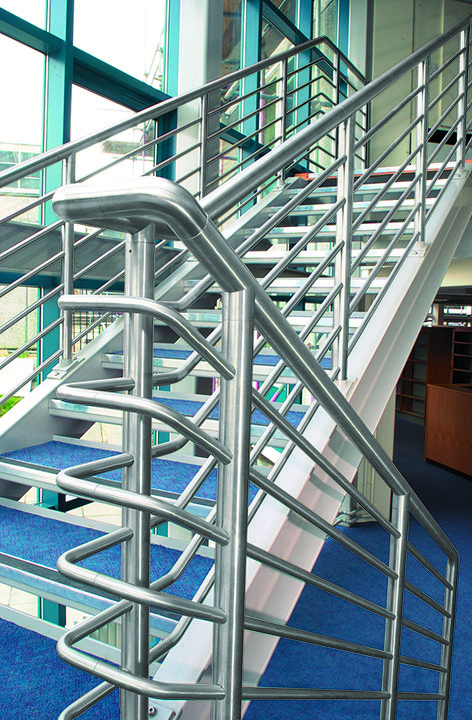

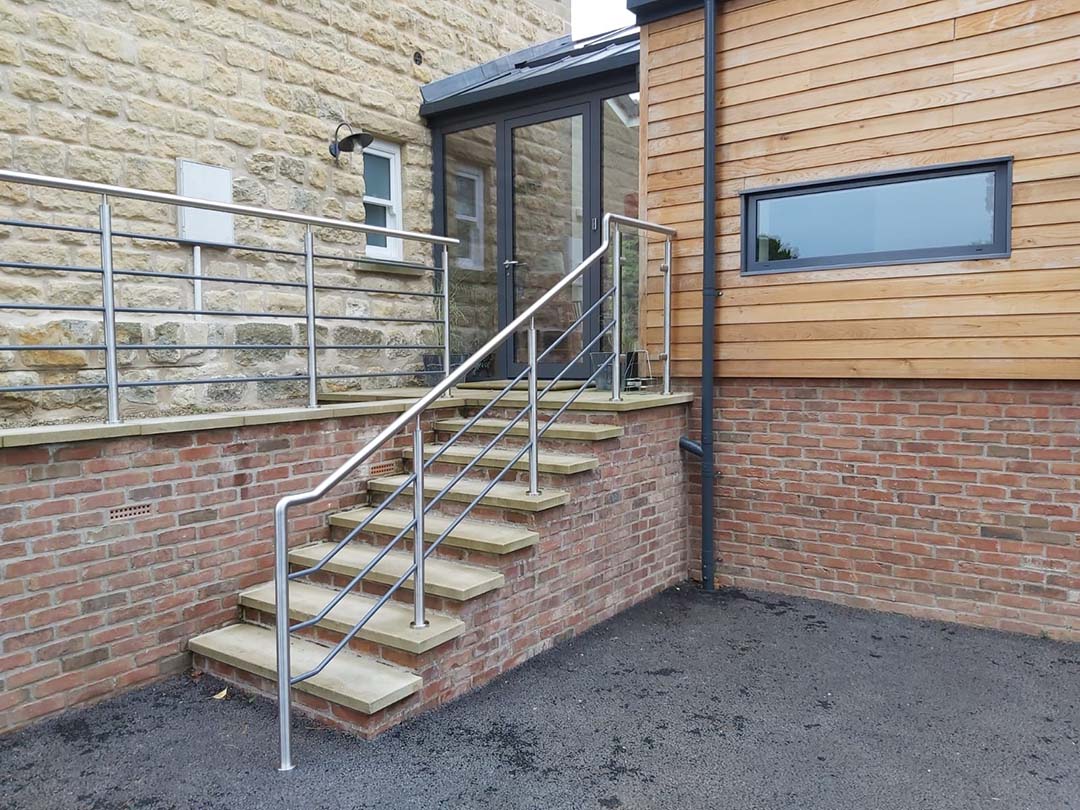

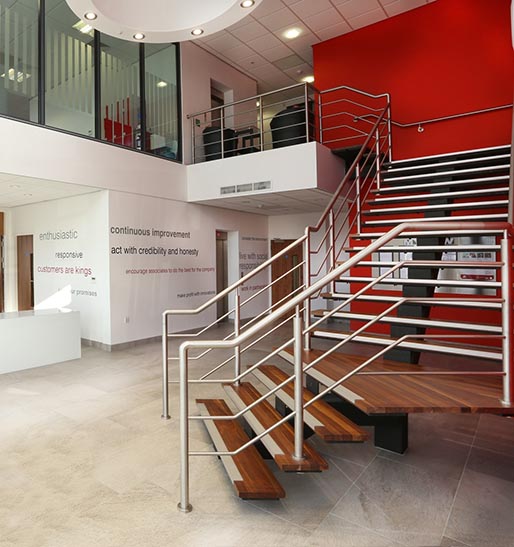

Providing classic styling, our horizontal railed infills can be powder coated in a range of colours and finishes. The number of rails can vary according to preference, this particular one is Ø22 rails.

Providing classic styling, our horizontal railed infills can be powder coated in a range of colours and finishes. The number of rails can vary according to preference, this particular one is Ø50 rails.

Tension wire infills provide contemporary minimalist styling as well as providing attractive looks.

Neaco’s base fixing detail utilises our custom extruded profile base plate, providing a solid platform for the stanchion to fix onto.

Neaco’s grout fixed detail requires core holes to be drilled on-site, please note core drilling is a wet trade so we advise this is done before any final finishes are applied.

Neaco’s side fixed detail allows the stanchions to be fixed on the side of any structure, typically with a 40mm offset and the side we are fixing to needs a minimum requirement of 150mm depth.

Toprails and wallrails can be connected to the stanchions with different connectors depending on your preference.

Toprails and wallrails can be connected to the stanchions with different connectors depending on your preference.

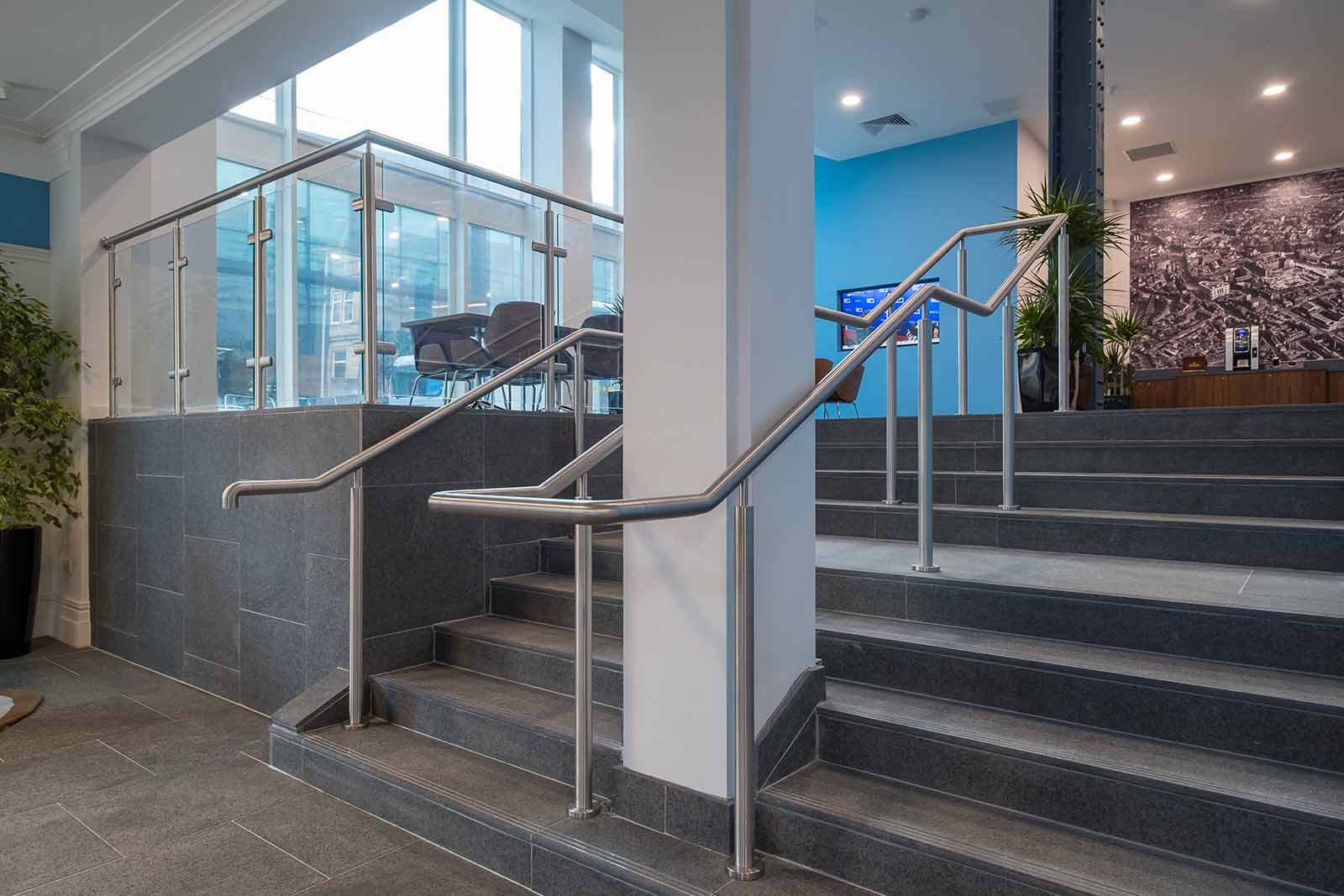

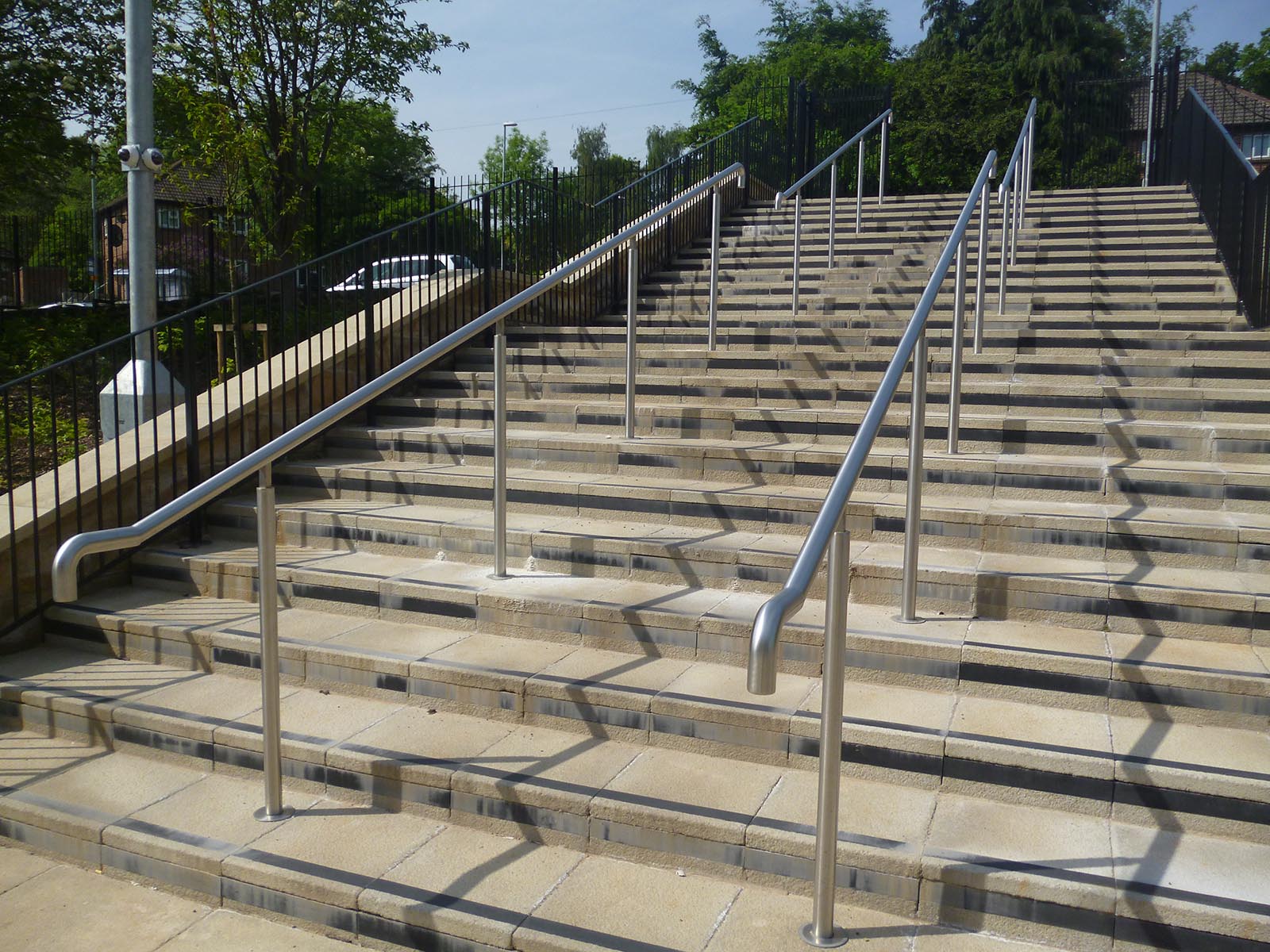

The tubular toprail is our most popular specification across all types of design schemes. As well as being economical, it meets compliance and Building Regulations for all types of environments.

The ovular toprail provides an alternative option with a profile which is wider than the tubular rail. It provides excellent strength and comfort. Its unique design means it can only be used on straight runs and not raking.

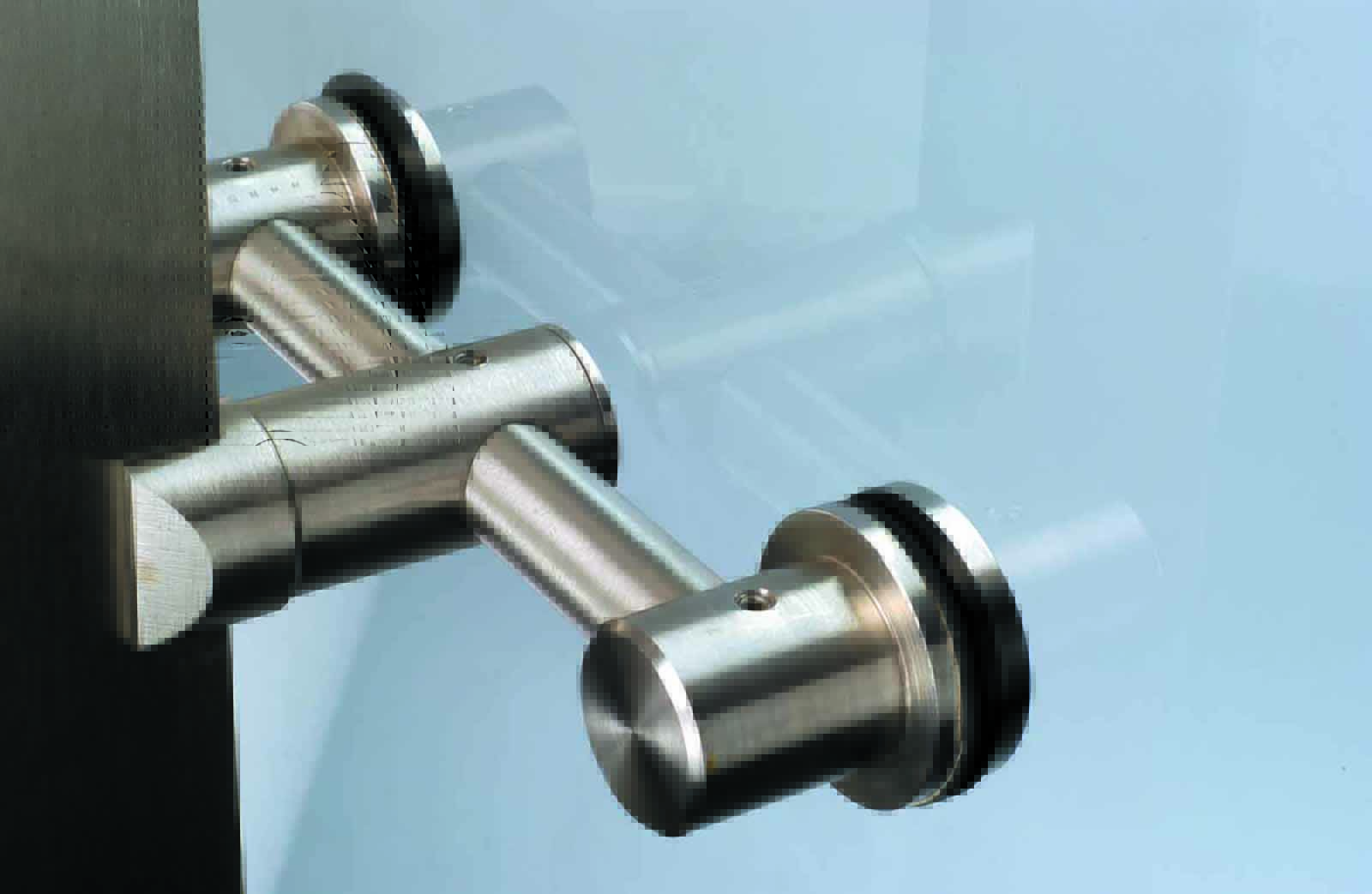

Offset handrails can be fixed to stanchions or glass panels. This option allows glass infills to be extended higher for a clearer view and an attractively minimalist aesthetic.

Handrails can be directly mounted to walls or fixed and supported with a variety of different brackets styles.

Handrails can be directly mounted to walls or fixed and supported with a variety of different brackets styles.

Handrails can be directly mounted to walls or fixed and supported with a variety of different brackets styles.

Stainless Steel

Stainless Steel Balustrade is engineered to close tolerances, with quality-formed bends eliminating the need for unsightly mitred joints. Component parts are mechanically secured with concealed fixings, requiring no welding and ensuring rapid assembly on-site (all fixings are supplied). Bespoke finishes are available, and the balustrade can also be combined with the Spectrum Aluminium Stanchions to create a Duplex system.





Stainless steel is an excellent choice of material in the specification of a handrail and balustrades, but it’s important to consider several factors to make sure you maximise its performance and aesthetic appeal. Stainless steel is also a group of corrosion-resistant steel alloys that by definition comprise a minimum of 10.5% chromium. The chromium reacts with oxygen to produce an oxide film on the surface which provides corrosion resistance. Unlike coatings such as paint or galvanising, this passive film re-forms if it is damaged by abrasion, thereby continuing to protect the metal.

Ask Us For a Quote

Our friendly, expert team are on hand to speak with you and advise on your requirements.


FAQ’s

What grade of Stainless Steel do Neaco use?
Our balustrades are precision engineered from a high grade of 304 and 316 stainless steel to suit internal and external environments.
What makes stainless steel so strong?
The Stainless Steel used in our Balustrade systems contains 10.5% Chromium which produces an oxide film on the surface providing corrosion resistance to the elements.
What is a modular system?
Modular systems provide a huge range of modular components which are precision- manufactured off-site to an exacting standard, deliv­ered to the site and then assembled on-site. This means factory-controlled quality, faster installation, less mess, less waste and less energy con­sumption than products which are fabricated on-site. Spectrum's modular components are assembled with an internal connection system which requires no external fixtures and no welding for an ultra-smooth finish.
Do Neaco install as well as supply?
Yes, we provide a full installation service in addition to technical support and consultation throughout the specification process. Our team of experts is always on hand to assist at every stage.
Do Neaco offer bespoke solutions?
Yes, absolutely. Over the years we have worked with numerous architects and designers to incorporate bespoke features outside of our standard specifications, including light fittings to the top of stanchions, etched designs to glass infills and structural glass installed at unusual angles. We pride ourselves on the flexibility and adaptability of our technical support services, so please feel free to discuss your particular requirements with one of our team.
