Brise Soleil

The Genesis Range

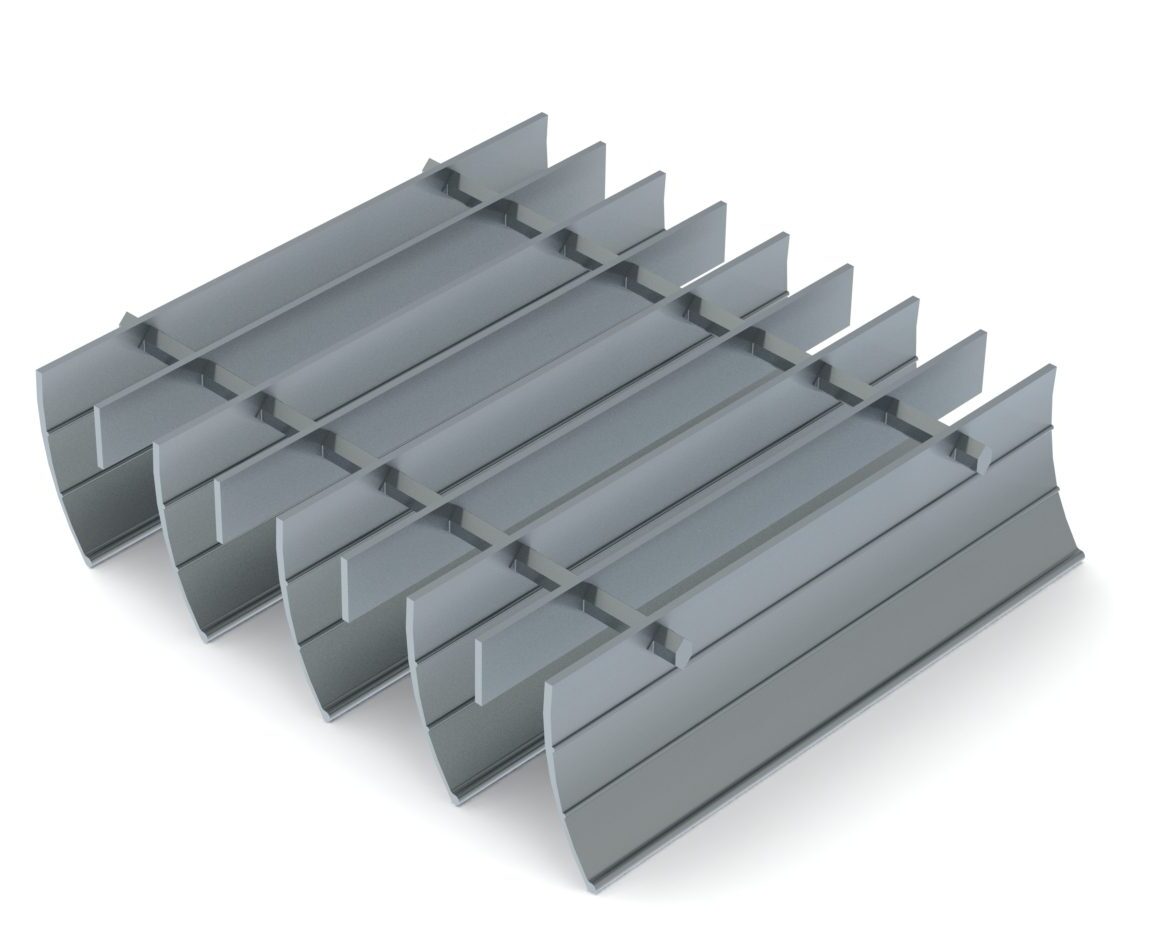

Brise Soleil uses curved alternate louvre extrusions to provide the same high performance as our Louvredek, either as a combined walkway and sunscreen or solely as a sunscreen.

In Our Element

Manufactured from 6063 T4 / T6 Aluminium to the BS EN 755 standard series

Truly Modular

Manufactured off-site to reduce time, disruption and impact on-site to your bespoke dimensions

Extremely Durable

Has a design life of 60+ years and comes with our 25 Year Warranty*

Non-Combustible

A1 Fire Rated and fully compliant with BS EN 13501-1

Brise Soleil greatly reduces the net heat gain (commonly in the order of 20-40%) of sunlight striking tinted or clear windows.

Surface Contact Area

Has a surface contact area of 10.6% – 16%

Superior Shading Capabilities

With a 62° curved angle to restrict sunlight

Environmentally Friendly

100% recyclability manufactured from 77% recycled aluminium

Unique Swage-Locked Design

Creating the maximum level of structural integrity

Solar Shading

Although at first glance Brise Soleil appears to be regular metal grating, it is specifically designed to achieve the optimum benefits of sunlight and assist the energy efficiency of a building. Readily adaptable to your specific design requirements, it can be installed anywhere required: underfoot, on an angle or overhead.





Fire Rating: Zero fire rated

Surface contact area: 10.6% – 16%

Materials used: load-bearing bars in Aluminium Alloy 6082 T6
& swage bars in Aluminium Alloy 6082 T4

Recycled content: 85-100% (finished product is also 100% recyclable)

Brise Soleil Walkways

SWP 25/3/56

73mm deep curved bar & 25mm x 3mm plain bar

Self-weight 14.6 kg/m2

SWS 25/3/73

73mm deep curved bar & 25mm x 3mm serrated bar

Self-weight 14.3 kg/m2







Brise Soleil Sunscreens

(Not to be walked on)

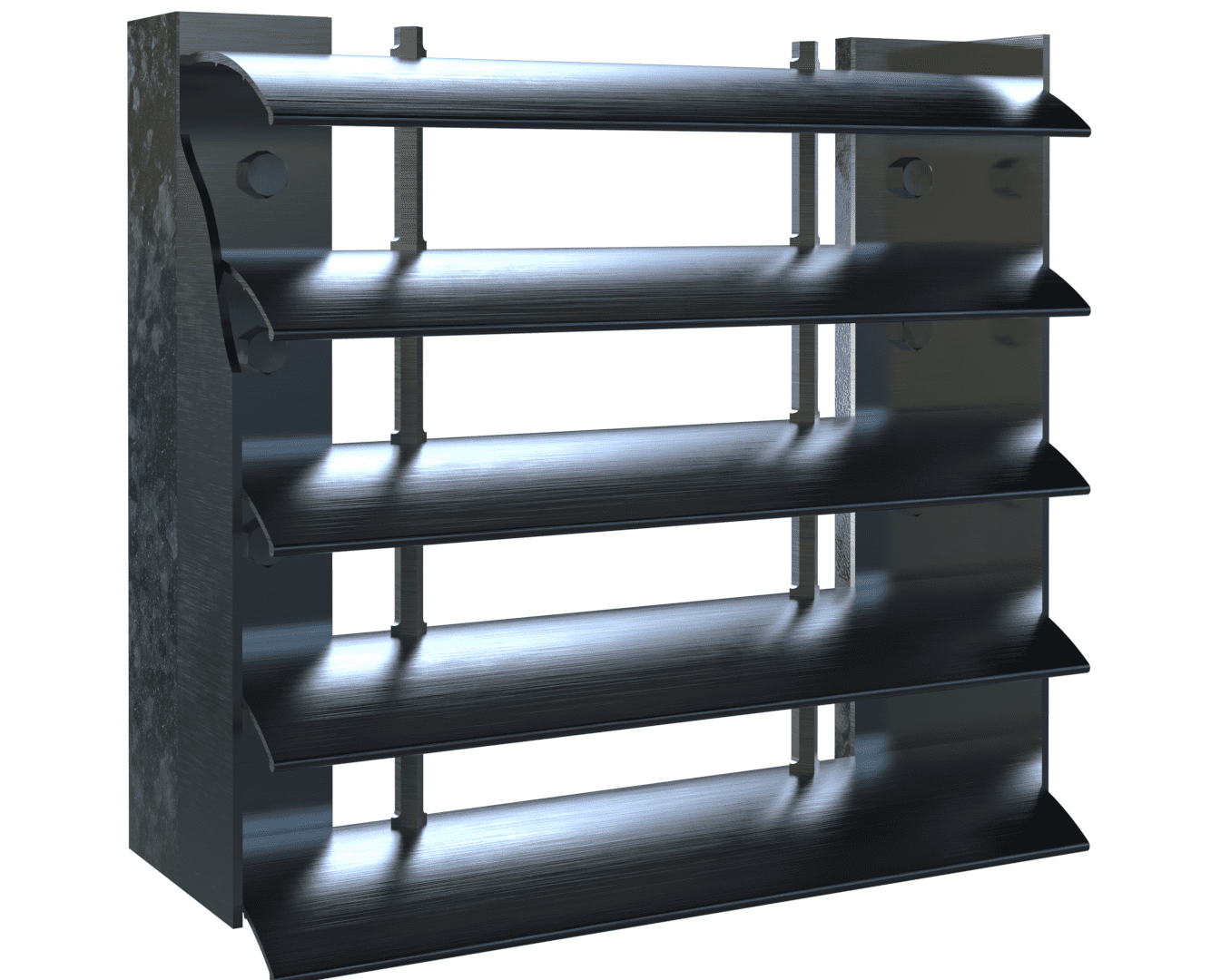

SS 3/73

73mm deep curved bar

Self-weight 11 kg/m2



Ask Us For a Quote

Our friendly, expert team are on hand to speak with you and advise on your requirements.


FAQ’s

What is a solar shading product?
It is a product that helps control the amount of light and heat that is admitted from the sun onto a building.
When would you utilise Brise Soleil?
Brise Soleil can be used as both a solar shading product and as an access walkway.
Why do we use Aluminium?
Aluminium is a great building material for many reasons: it provides maintenance-free durability and is non-toxic, corrosive-free, non-combustible and 100% recyclable. It's also lightweight yet strong, which makes Techdek an ideal specification for applications such as roof access walkways. Aluminium's aesthetically pleasing properties can be further enhanced with coating or anodisation.
Do we supply as well as install products?
Yes, we provide a full installation service in addition to technical support and consultation throughout the specification process. Our team of experts is always on hand to assist at every stage.
Do we offer a bespoke service?
Yes, absolutely. Over the years we have worked with numerous architects and designers to incorporate bespoke features outside of our standard specifications, including grilles installed at unusual angles and specially developed solar shading louvres in a powder-coated finish to match the colour scheme of the building. To accommodate existing building features we can manufacture grille panels with bespoke cut-outs to allow obstacles to pass through. We pride ourselves on the flexibility and adaptability of our technical support services, so please feel free to discuss your particular requirements with one of our team.
